LIGHTWEIGHT SPEED

Some might say aero doesn’t matter on a gravel bike, but if you’ve battled a headwind across an open prairie, the thirty-two grams of drag you’ll save with the Áspero-5 come as a welcome respite. Most gravel racing is done without the benefit of a World Tour peloton—or World Tour tactics—and when it’s your nose in the wind all day, it’s nice to know your bike’s shouldering a bit of the load.



TWO-POSITION ADJUSTMENT

Trail—front-wheel response to rider input—is the most critical factor in high-velocity handling. Flipping the two-position "Trail Mixer" to compensate for the difference in circumference between a 650b and 700c tire maintains consistent handling by maintaining consistent trail figures.



MULTIPLE CONFIGURATIONS

We designed Aspero with clearance for up to 700c x 40mm tires or 650b x 49mm tires. Of course, there are variables—rim width, tire casing, and tread depth—which will affect final clearance. We (and the International Organization for Standardization, or ISO), always recommend 4mm of clearance between the tire and frame.

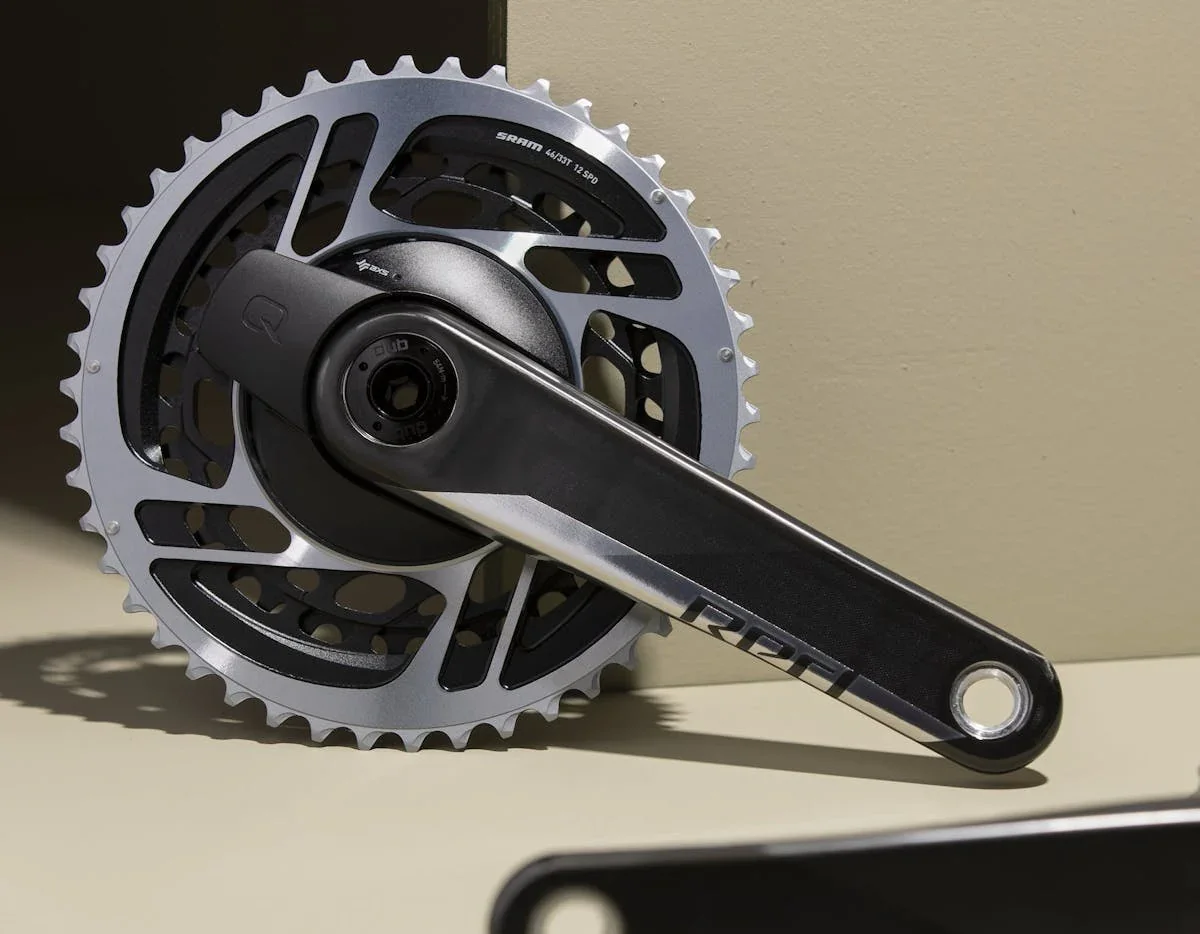

SRAM INTEGRATED POWER

Red and Force builds include Quarq Zero powermeters integrated into the crank. The integration of a powermeter results in better stiffness, lighter weight, and improved accuracy over aftermarket solutions—and the DZero delivers power measurement accurate to +/- 1.5%, even in variable temperatures.



SPECIFICATION

SIZES	48, 51, 54, 56, 58, 61
FORK	Cervélo All-Carbon, Tapered Aspero-5 Fork
HEADSET	FSA IS2 1-1/4 x 1-1/2
STEM	Cervélo ST32 Alloy
HANDLEBAR	Cervélo AB09 Carbon, 31.8mm clamp, 16 degree flare
SEATPOST	Cervélo SP19 Carbon 27.2 OR Easton EA50 Alloy
SADDLE	Prologo Dimension NDR T4.0
SHIFTERS	Campagnolo Ekar, 13 speed
BRAKE CALIPERS	Campagnolo Ekar
BRAKE ROTOR	Campagnolo Steel AFS 160
REAR DERAILLEUR	Campagnolo Ekar, 13 speed
CASSETTE	Campagnolo Ekar, 9-42, 13 Speed
CHAIN	Campagnolo Ekar, 13 speed
CRANKSET	Campagnolo Ekar, 38T, 13 Speed
BOTTOM BRACKET	Campagnolo Pro-tech BBright
WHEELS	Fulcrum Rapid Red 300, 12x100(F)/142(R), 24H, 24mm IW, N3W freehub, centerlock, tubeless compatible</td >
THRU AXLES	Cervelo Aero Thru-Axles, 12x100/142
TIRES	Panaracer Gravel King SK 700x38c
MAX TIRE WIDTH (ACTUAL)	41mm (700c) / 47mm (650b)
ACCESSORIES	Smartpak 400A Top Tube Storage Bag



GEOMETRY

	48	51	54	56	58	61
Reach | mm	370	379	388	397	406	415
Stack | mm	505	530	555	580	605	30
Head Tube Angle	71°	71.5°	72°	72°	72°	72°
Front Center | mm	583	592	602	619	637	654
Bottom Bracket Drop | mm	78.5	78.5	76	76	73.5	73.5
Head Tube Length | mm	83	107	133	159	188	214
Top Tube Length | mm	512	532	553	575	591	608
Seat Tube Angle	74.5°	74°	73.5°	73°	73°	73°
Standover Height | mm	690	732	764	788	814	838
Trail | mm	58.6(700C) / 58.1(650B)	58.6(700C) / 58.1(650B)	58.6(700C) / 58.1(650B)	58.6(700C) / 58.1(650B)	58.6(700C) / 58.1(650B)	58.6(700C) / 58.1(650B)
Wheel Size	700C	700C	700C	700C	700C	700C
Fork Offset | mm	52/57	49/54	46/51	46/51	46/51	46/51
Wheelbase | mm	990	1000	1010	1027	1046	1063
Chainstay Length | mm	420	420	420	420	420	420
