Gates CDX Fin Line Sprocket Front – for 5 – arm cranks

The Gates CDX Fin Line Sprocket is made from lightweight, durable aluminium for smooth running, low maintenance and trouble-free operation in snow and mud thanks to the Mudports open tooth profile. In addition, the surface is hard anodised for longer life.

• Material: 6061 aluminium

• Wear-resistant due to hard anodised surface

• Colour: black

• Mounting: 5 holes

• bolt circle: 130 mm

• Finline design with central guide flange

• Pitch: 11 mm





Gates CDX Center Track Sprocket Front – for 4–arm cranks

The Gates CDX Centertrack Sprocket is made from lightweight, durable aluminium for smooth running, low maintenance and trouble-free operation in snow and mud thanks to the Mudports open tooth profile. In addition, the surface is hard anodised for longer life. The patented CenterTrack design with central guide flange also ensures that the belt will not run off.

• Material: 6061 aluminium

• Wear-resistant due to hard anodised surface

• Colour: black

• Mounting: 4 holes

• bolt circle: 104 mm

• Centre track design with central guide flange

• Pitch: 11 mm

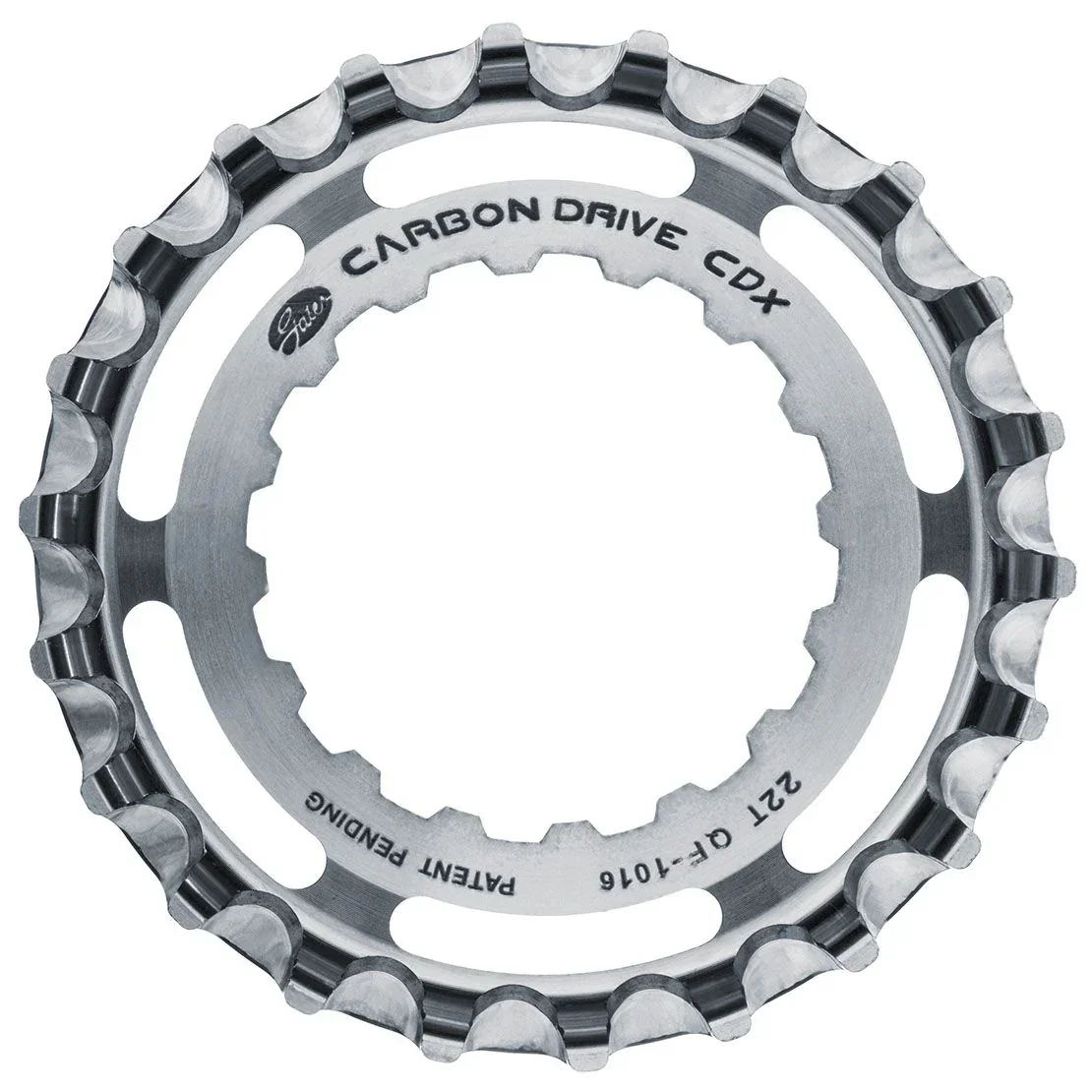

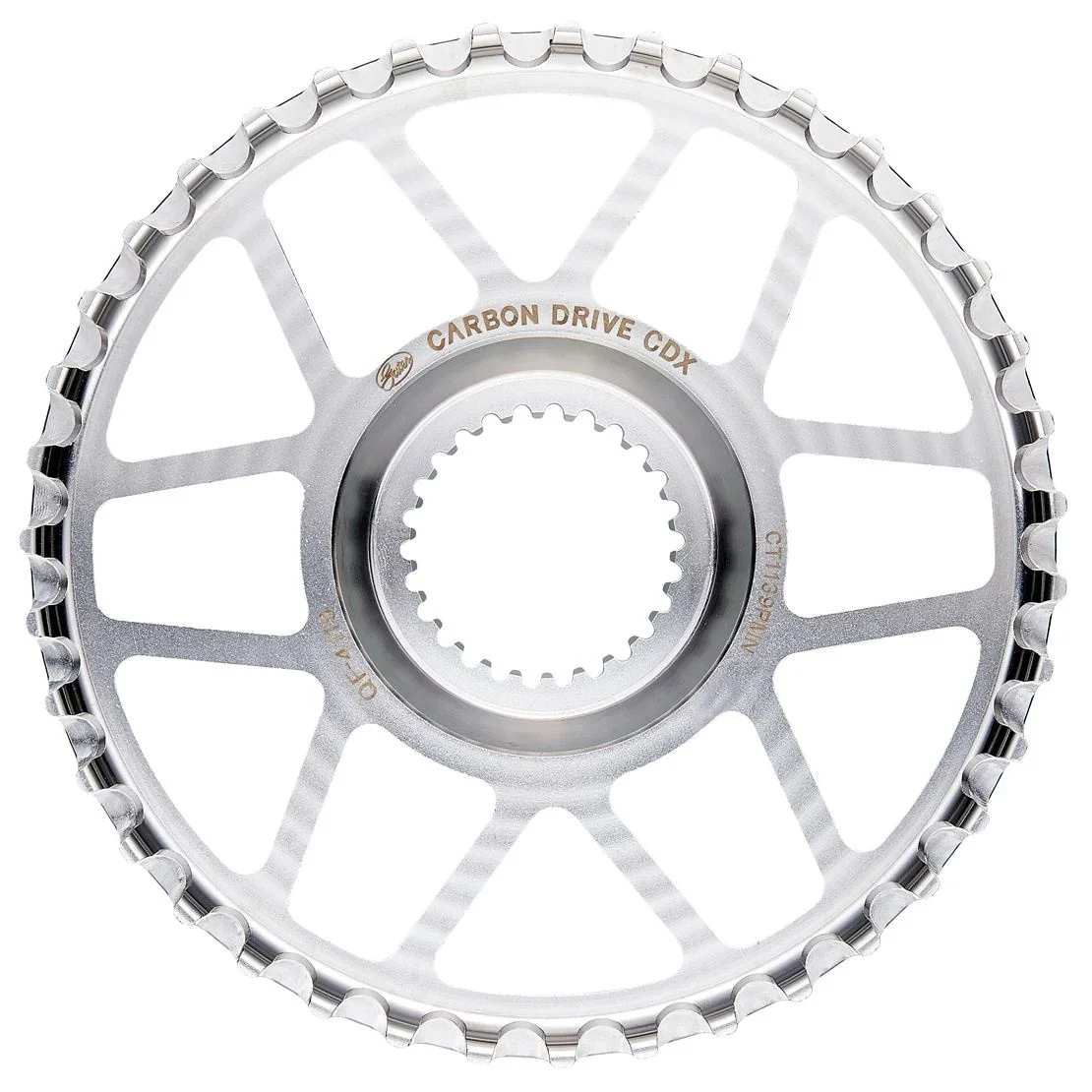

Gates CDX Center Track sprocket - front - S550

The Gates CDX Center Track sprocket with direct mount is ideal for MTB use, adventure, bikepacking and trekking tours. In addition, the proven tooth profile (Mudports) offers optimum performance and durability. The patented Center Track design with central guide flange also ensures that the belt does not run off.



Note: for Rohloff-Beltline (54,7 mm) and Unified Beltline (45,5 mm)



Technical data

• Material: wear-resistant 7075 aluminum

• Color: black anodized finish

• available for belt line 45.5 mm and 54.7 mm

• Mounting: Direct Mount

• Center Track design with central guide flange

• Pitch: 11 mm
