LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING

ADVENTURE ON AND OFF-ROAD RIDING

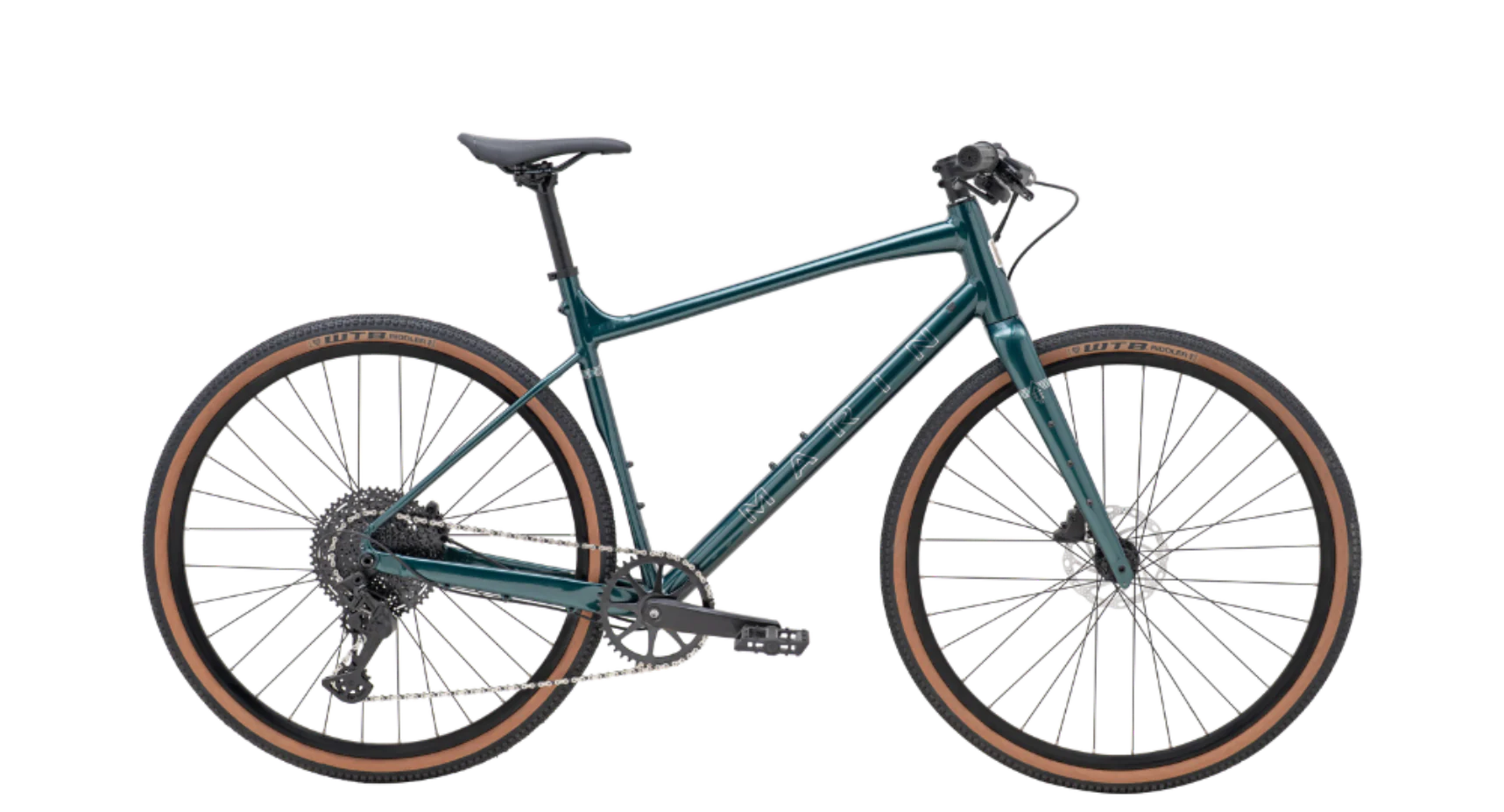

Hopping up to a higher-spec Series 3 aluminum frame and a carbon fibre fork, the DSX 1 is lighter and slightly stiffer than the base model bike. There’s also an 11-speed 1X Tektro drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.



Specifications
Frame Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount
Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Rims Marin Aluminum Double Wall, Disc Specific
Hub, Rear Forged Aluminum Alloy, Disc, 32H
Hub, Front Forged Aluminum Alloy, Disc, 32H
Spoke, Nipples 14g Black Stainless Steel
Tires WTB Riddler, 700Cx45mm
Derailleur, Rear Tektro Gemini, SL-M5100, 11-speed
Derailleur, Front -
Shift Lever Tektro Gemini, SL-M5100, 11-speed
Crankset Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Chain KMC X9
Cassette Tektro Gemini,, CS-M5100, 11-Speed, 11-50T
Brake, Front Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor
Brake, Rear Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor
Brake Levers Tektro Hydraulic
Handlebar Marin Mini Riser
Stem Marin 3D Forged Alloy
Grips Marin MTB
Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost Marin Alloy
Saddle Marin DSX
Pedals Nylon Platform

Specifications, pricing, and availability are subject to change without notice.
