Woom EXPLORE e 5

Woom EXPLORE e 5

Just go further – with the superlight and sporty standard e-bike with 24″ wheels for kids aged 7 years and over. See ya later, limits... Confidence is in town!



Mission: Possible

A daunting mountain? Bring on the altitude. Route too long? Not anymore! The woom EXPLORE e – the first sporty standard e-bike from woom – opens up exciting new adventures that were once off limits to your child. Those old limits are gone. And they're being replaced with independence!



Specifications

E-motor

  • MAHLE XS30 drive unit with 250 W of power
  • Battery capacity of 171 Wh (corresponding to a range of around 50 km on flat terrain in the lowest power mode)
  • 45 Nm torque
  • 25 km/h assistance limit, three power modes
  • External, removable battery (1.2 kg)
  • Can be controlled via the MAHLE app and the button on the battery
  • Option to ride as normal without the battery

Frame

  • Frame material: lightweight, high-quality AA 6061 aluminum with butted tubes
  • 24" wheels
  • Child-specific, sporty geometry with a slight kink in the top tube and angular tube profile for a comfy ride and standout style

Gears

  • 8 speeds
  • microSHIFT Acolyte RD-M5185S rear derailleur
  • microSHIFT Acolyte trigger shifter

Fork

  • Lightweight aluminum unicrown fork
  • 1″ steerer tube
  • Generous trail angle for easy, well-balanced handling

Wheels

  • Ultralight aluminum rims
  • Aluminum hubs with sealed bearings and mount for woom click-on mudguards
  • Quick-release axle on front wheel for easy removal/fitting
  • Bolt-on rear wheel
  • 24 lightweight, super strong stainless steel spokes, double-crossed spoking

Headset

  • Fully integrated 1″ headset
  • Sealed industrial-grade bearings
  • Integrated Ahead plug

Tires

  • 24 × 2″ Billy Bonkers folding tires (Performance Line) from Schwalbe
  • Agile, grippy all-terrain tires with low rolling resistance
  • Reflective stripes on the sides of the tires for maximum visibility even in low-light conditions

Stem

  • Superlight stem made out of forged aluminum
  • Adjustable height and reach of stem offering an optimal riding position as the child grows
  • Handlebars attached via two clamps and fixed with two 5 mm hexagon socket bolts
  • Handy ABC marking making it easier to adjust the handlebars in relation to the saddle height

Saddle

  • Super comfy
  • Ergonomic design, specific for each frame size/age
  • Developed in collaboration with Selle Royal

Handlebars

  • Wide, lightweight aluminum bars with an ergonomic design and child-specific tapered ends to suit smaller hands
  • Sandblasted and anodized in black
  • Width: 580 mm

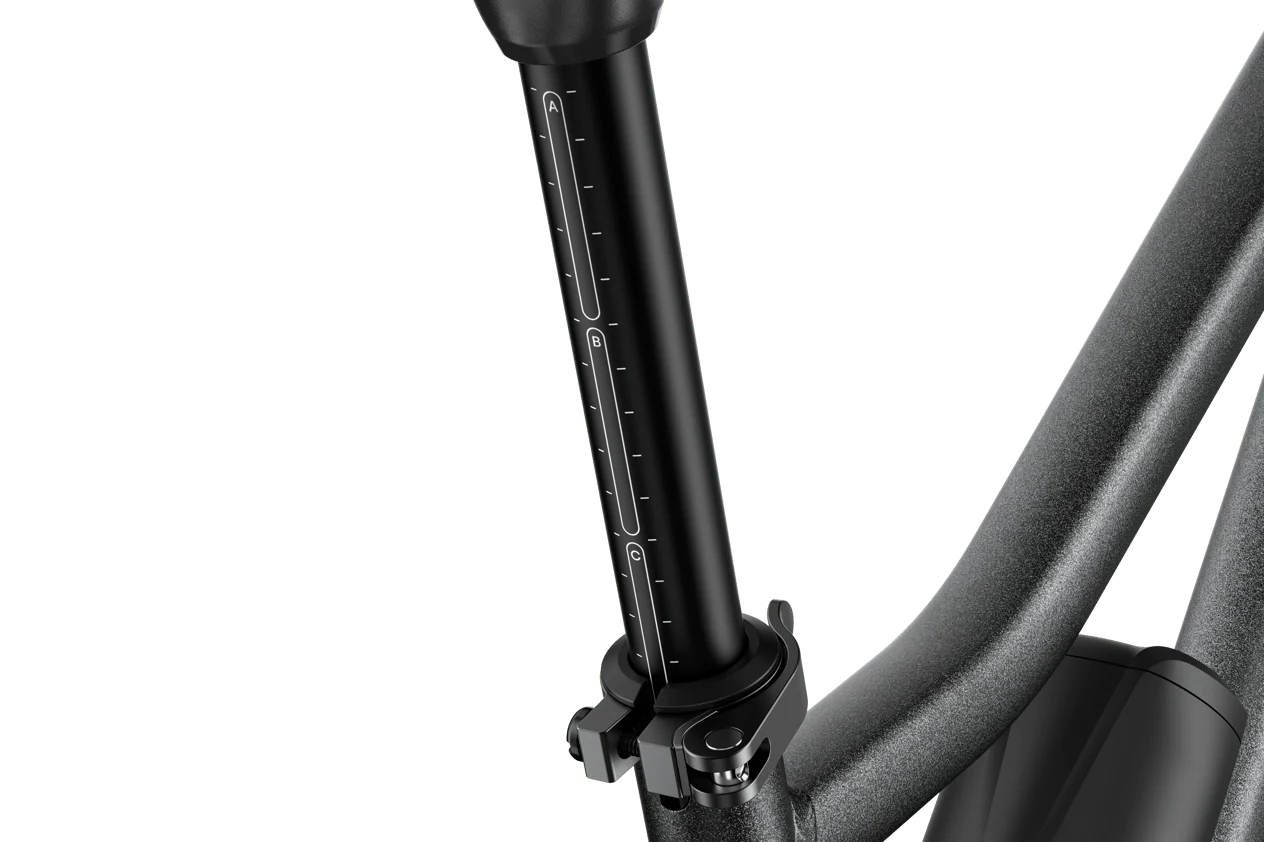

Seatpost

  • Anodized aluminum seatpost with minimum insertion mark
  • Handy ABC marking making it easier to adjust saddle height in relation to the bars/stem

Grips

  • Ergonomic grips
  • Slim, child-specific diameter
  • Targeted comfort zone prolonging the onset of fatigue on long rides
  • Lock-on design holding the grips securely on the bars

Seatpost clamp

  • Made of aluminum
  • Long quick-release lever, easy to operate requiring only minimal strength
  • No risk of turning and/or twisting
  • Integrated shim preventing the seatpost from being scratched

Drivetrain

  • Lightweight, forged 130 mm aluminum cranks with narrow tread (Q-factor)
  • Narrow-wide chainring with 28 teeth
  • Cassette with 11–32 teeth
  • Narrow, flat platform plastic pedals
  • Sealed cartridge

Brakes

  • Hydraulic flat mount disc brakes from Promax
  • Rotor diameter front/back: 160/140 mm
  • Adjustable, ergonomic brake levers designed for children

Colors

graphite grey

Weight

9 kg (without pedals) + 3.7 kg electric drive system

Weight limit

Up to 68 kg

Shipping dimensions

126 x 26.5 x 63.5 cm
