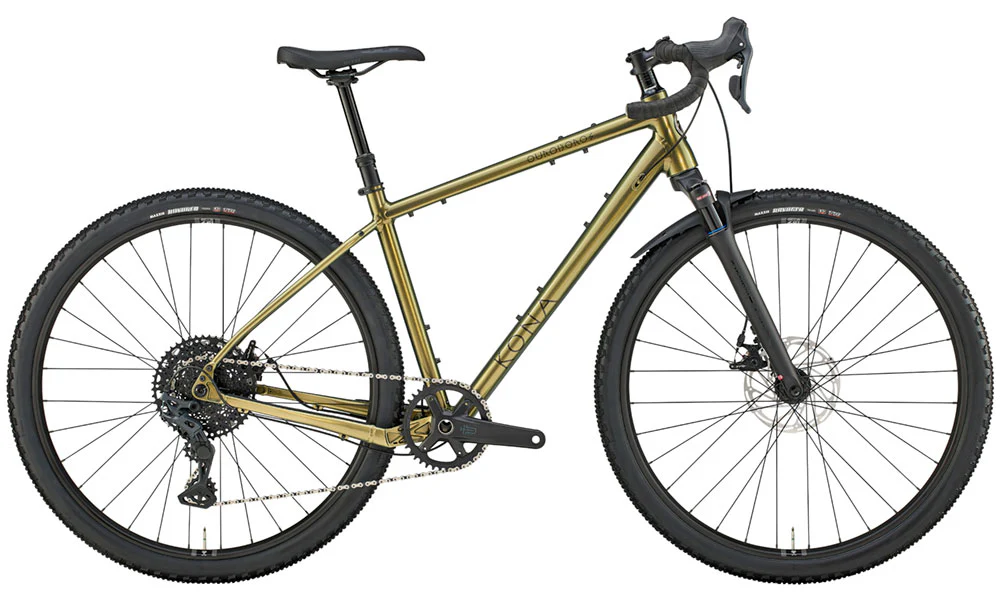

Kona Ouroboros AL Microshift
The aluminum Ouroboros is impressively capable, with componentry that is unwavering in reliable performance. Designed with the intention to stay off the grid, escape into the wilderness ā worry free. We took the best parts of our award-winning gravel bikes, and the enchanting characteristics of our iconic mountain bikes, and delivered a drop bar bike that doesnāt rip by accident. Shred on, dear traveler, and let nothing hold you back.
SPECS
|
Frame Material |
Kona 6061 Aluminum Butted |
|
Sizes |
48, 50, 52, 54, 56, 58 |
|
Rear Shock |
n/a |
|
Fork |
Suntour GVX32 40mm travel, Tapered, 100x12mm |
|
Crankarms |
Microshift Sword |
|
Chainrings |
40t 10sp narrow-wide |
|
B/B |
Prowheel PF86.5 |
|
Pedals |
n/a |
|
Chain |
KMC X10 |
|
Cassette |
Microshift Sword 11-48t 10spd |
|
Chainguide |
n/a |
|
F/D |
n/a |
|
R/D |
Microshift Sword Long Cage w/Clutch |
|
Shifters |
Microshift Sword left dropper/brake and right brake/shifter |
|
Brake Calipers |
TRP Spyre C |
|
Front Brake Rotor |
TRP 180mm |
|
Rear Brake Rotor |
TRP 180mm |
|
Brake Levers |
Microshift Sword |
|
Headset |
FSA No.57B |
|
Handlebar |
Kona Gravel 20-degree flare, 48: 440mm; 50: 460mm; 52-54: 480mm; 56: 500mm; 58: 520mm |
|
Stem |
Kona Gravel 6-degree rise, 48-52: 50mm; 54-58: 60mm |
|
Seatpost |
TranzX Dropper +RAD Internal 31.6mm 125mm travel |
|
Seat Clamp |
Kona 34.9 |
|
Grips |
Kona Cork Tape |
|
Saddle |
WTB Volt |
|
Front Hub |
Formula 100x12mm 6-bolt |
|
Rear Hub |
Formula 142x12mm 6-bolt, standard road 11sp freehub body |
|
Spokes |
Stainless Black 14g |
|
Rims |
WTB ST i27 TCS 2.0 |
|
Front Tire |
Maxxis Ravager EXO TR 700x50c |
|
Rear Tire |
Maxxis Ravager EXO TR 700x50c |
|
Paint Color |
Gloss Metallic Turismo Olive w/ Porsche Olive Decals |
GEOMETRY
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 410 | 410 | 455 | 455 | 500 | 535 |
| 2 | TT Length | 532 | 547 | 559 | 578 | 595 | 616 |
| 3 | Reach | 372 | 377 | 382 | 386 | 391 | 396 |
| 4 | Stack | 566 | 581 | 598 | 616 | 636 | 666 |
| 5 | Standover | 725 | 730 | 769 | 777 | 814 | 848 |
| 6 | HT Angle | 68.7 | 68.7 | 68.7 | 68.7 | 68.7 | 68.7 |
| 7 | HT Length | 116 | 132 | 148 | 172 | 193 | 225 |
| 8 | ST Angle | 74.2 | 73.7 | 73.2 | 72.7 | 72.2 | 71.7 |
| 9 | CS Length | 445 | 445 | 445 | 445 | 445 | 445 |
| 10 | BB Drop | 69 | 69 | 69 | 66 | 66 | 66 |
| 11 | BB Height | 296 | 296 | 296 | 299 | 299 | 299 |
| 12 | Wheelbase | 1060 | 1071 | 1082 | 1096 | 1108 | 1124 |
| 13 | Front Center | 624 | 635 | 646 | 659 | 671 | 687 |
| 14 | Fork Length | 435 | 435 | 435 | 435 | 435 | 435 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 | 51 | 51 |
Ā
*All specifications are subject to change without notice.
