ADVENTURE ROAD AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING

ENDURANCE AND ALL-WEATHER PAVEMENT

The new Nicasio ST is built around a smooth-riding and stylish Series 1 double-butted CrMo frame and fork and zippy 700C wheels, with room for up to 45mm tires. The step-thru frame makes the bike easier to mount/dismount, especially when the bike may be loaded with cargo or a child seat. We’ve specced a 2x8-speed Shimano Claris drivetrain, wide WTB rubber, powerful Tektro mechanical discs and plenty of Marin components to ensure a smooth, safe, and FUN ride.



Specificaties

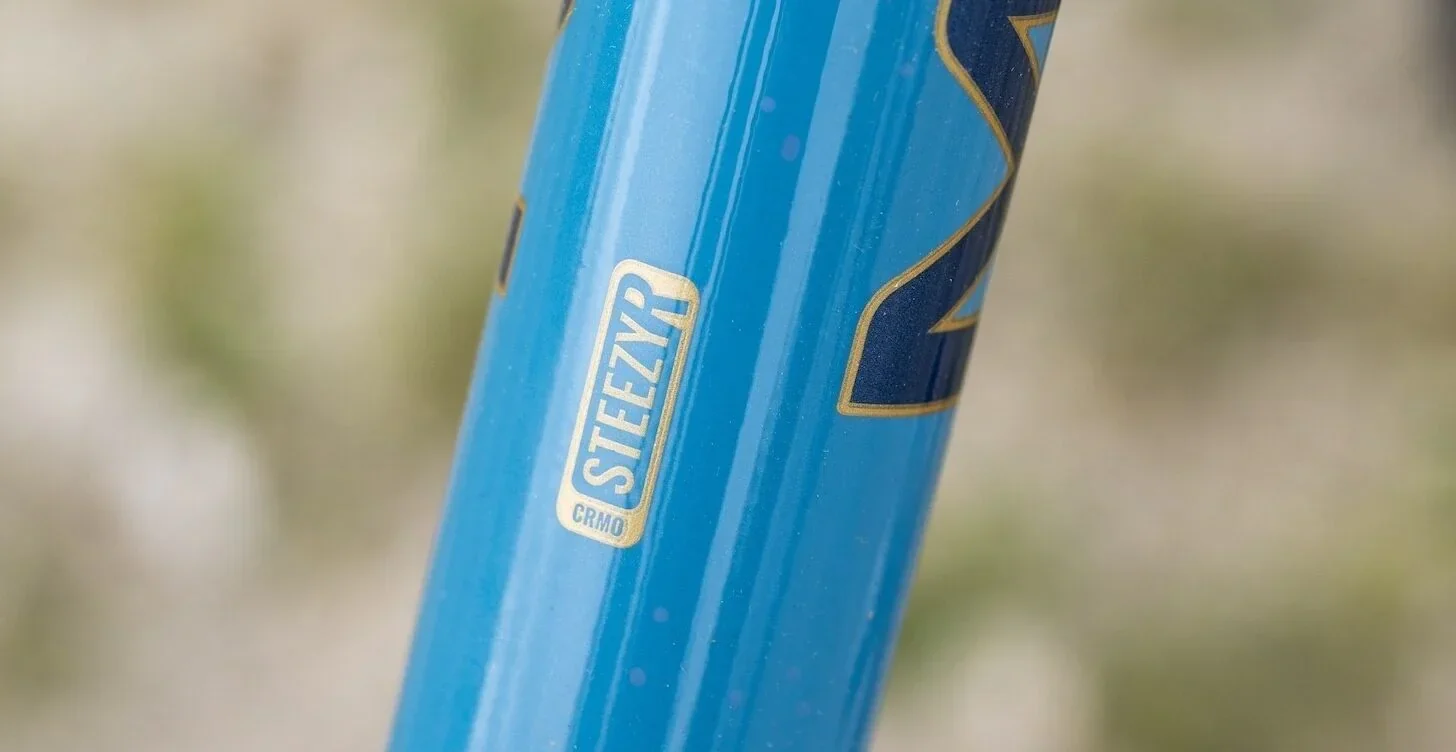

Frame Steezy Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Fork CrMo, Fender and Rack Eyelets, IS Disc Mount
Rims Marin Aluminum Double Wall, 19mm Inner, Disc Specific
Hub, Rear Forged Aluminum Alloy, Disc, 32H
Hub, Front Forged Aluminum Alloy, Disc, 32H
Spoke, Nipples 14g Black Stainless Steel
Tires WTB Exposure, 700Cx36, Wire Bead
Derailleur, Rear Shimano Claris 8-Speed
Derailleur, Front Shimano Claris
Shift Lever Shimano Claris 2x8-Speed
Crankset FSA Tempo Compact, 50/34T
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Chain KMC Z8
Cassette SunRace 8-Speed, 11-32T
Brake, Front Tektro MDC400, Road Mechanical, 160mm Rotor
Brake, Rear Tektro MDC400, Road Mechanical, 160mm Rotor
Brake Levers Shimano w/ Integrated Shifters
Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Stem Marin 3D Forged Alloy
Grips Marin Comfort Tape
Headset FSA No.8D, Sealed Cartridge Bearings
Seatpost Marin Alloy, 27.2mm
Saddle Marin Beyond Road Concept
Pedals Nylon Platform

Size	Rider height range
47cm	146cm to 152cm
50cm	152cm to 160cm
52cm	160cm to 168cm
54cm	168cm to 175cm
56cm	175cm to 183cm
58cm	183cm to 188cm
60cm	188cm to 193cm

Specifications, pricing, and availability are subject to change without notice.
