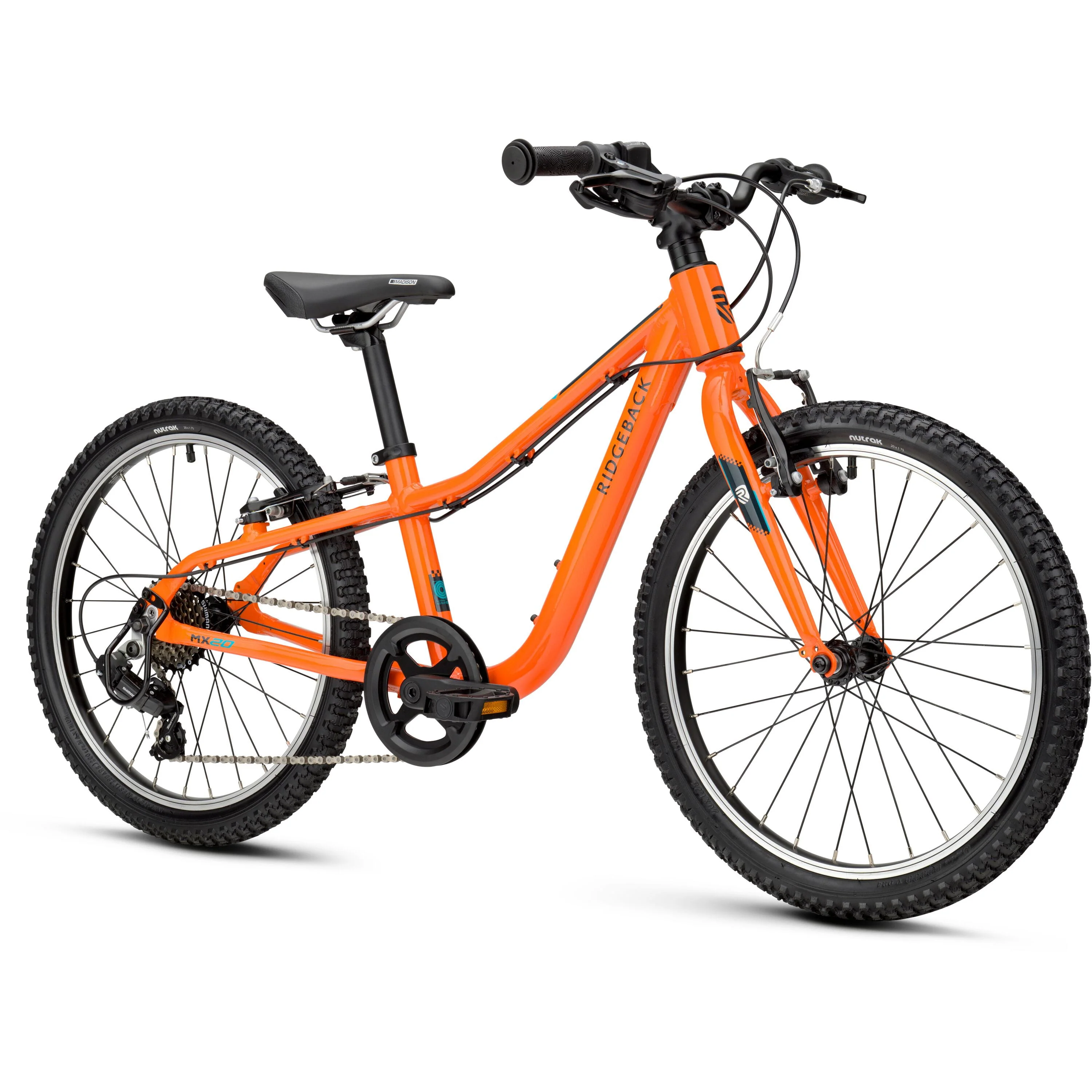

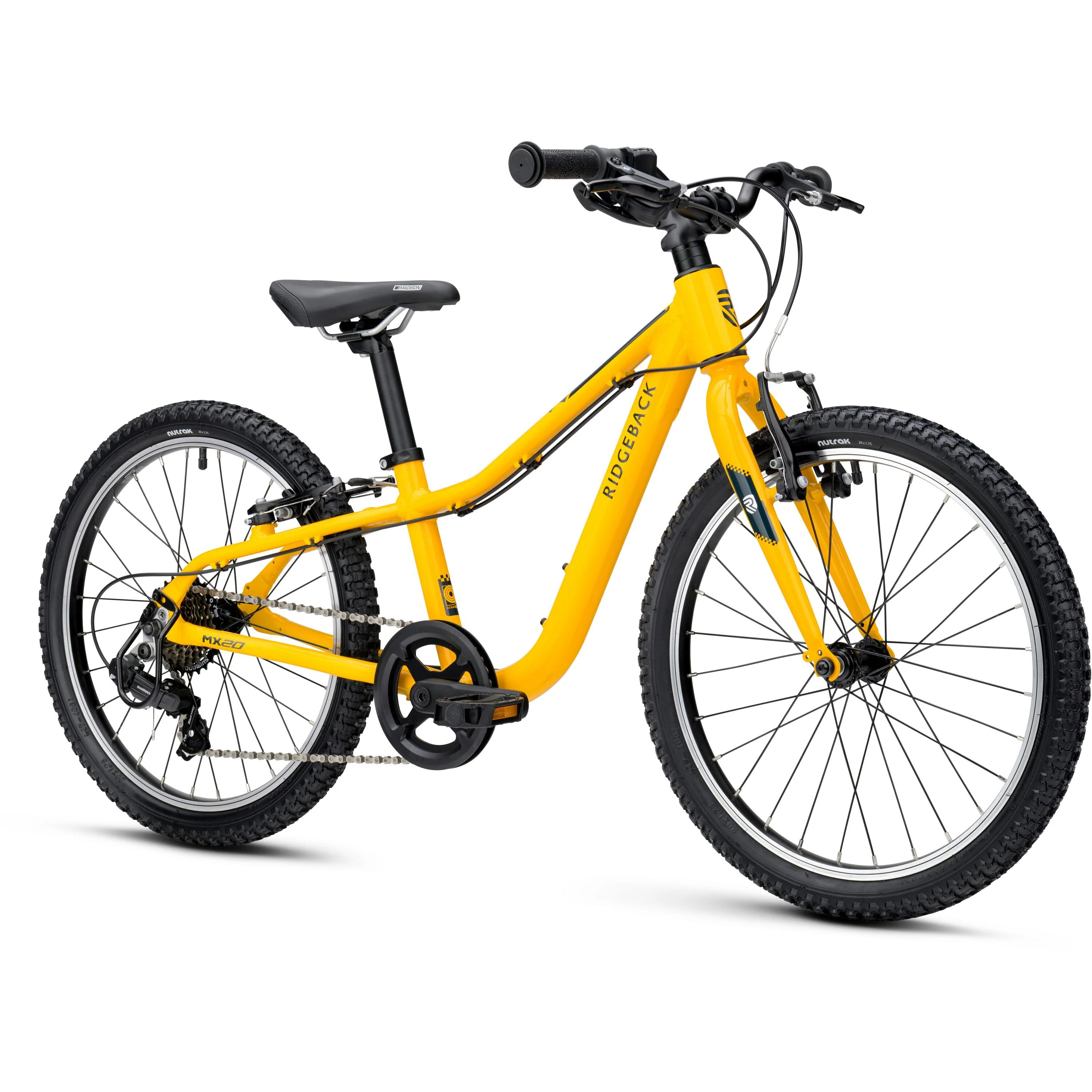

The MX20 — Shift Up a Gear and Go Further

The MX20 is the perfect kids bike for riders aged 5½ and upwards who are making the exciting move to gears and going further than ever before!

With 7-speed gearing to tackle the ups and downs of both hills and energy levels, your young rider will always have the right gear for the job. Easy to adjust for a perfect fit as they grow, the MX20 is built to keep up with every twist and turn. And with grippy tyres ready to handle paths and tracks, there's no limit to where the ride might take them.

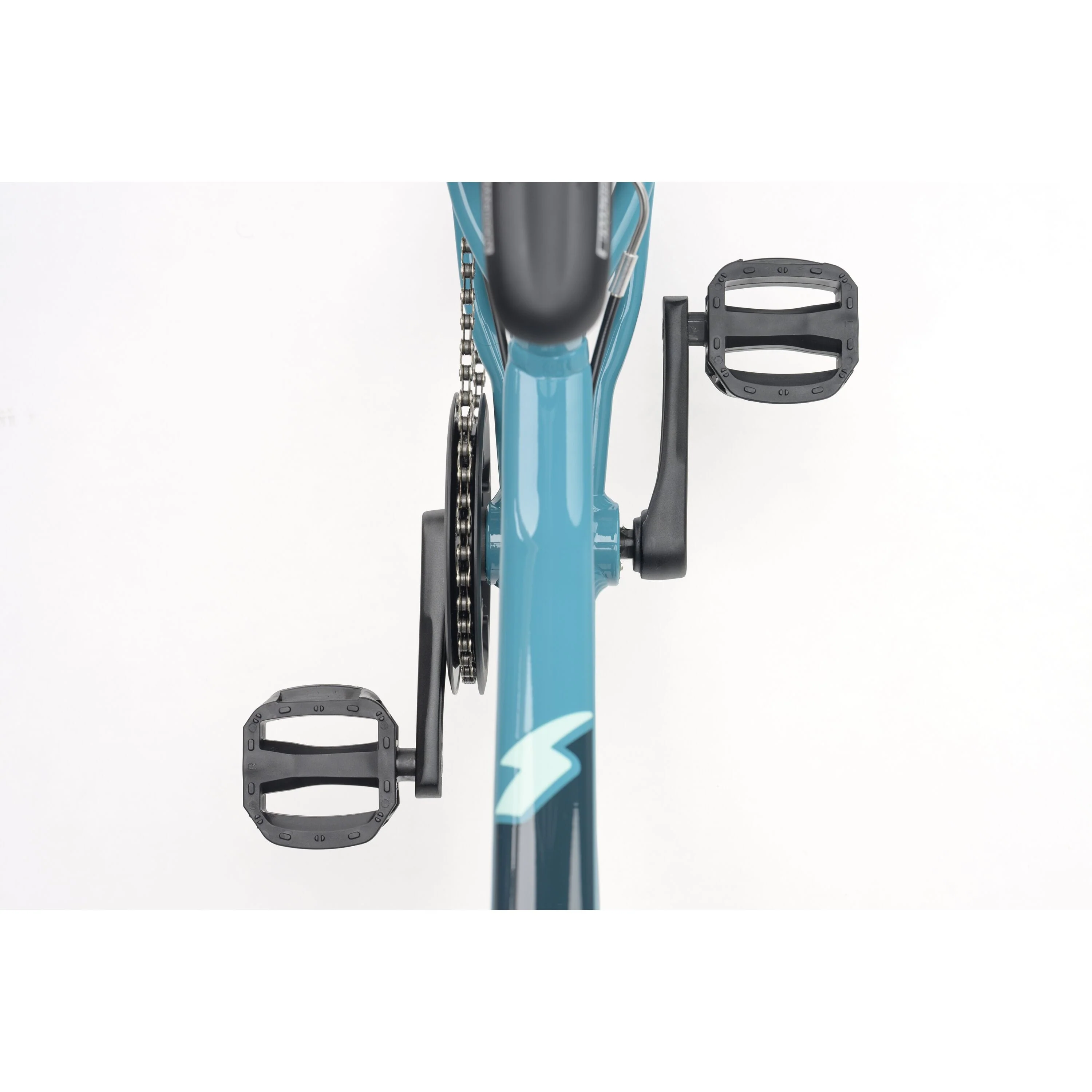

Easy-Pedal Cranks — Our pedal cranks are ergonomically correct, proportional to the child's leg length. They also place the pedals closer to the bike's centre so that children can pedal as smoothly and naturally as possible.

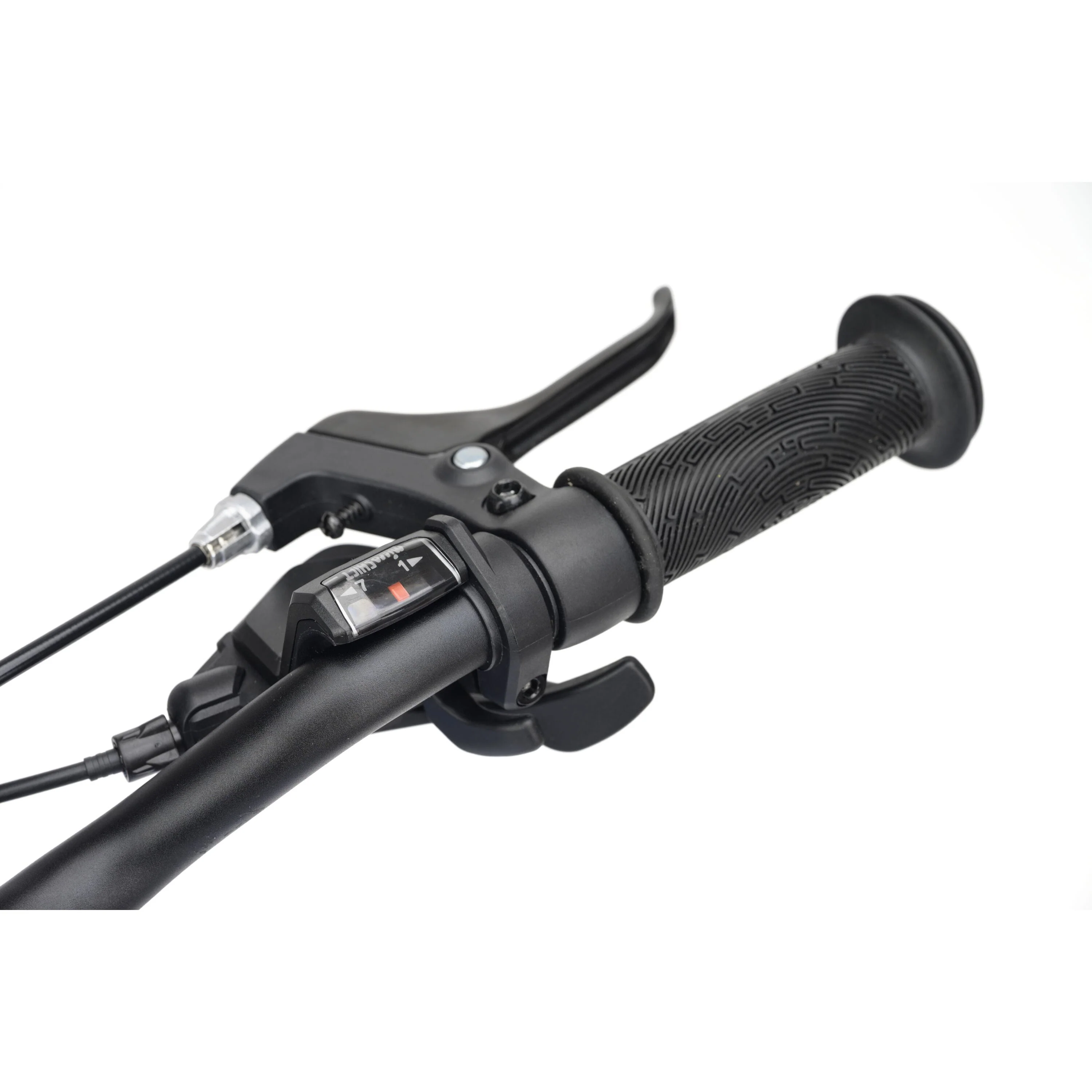

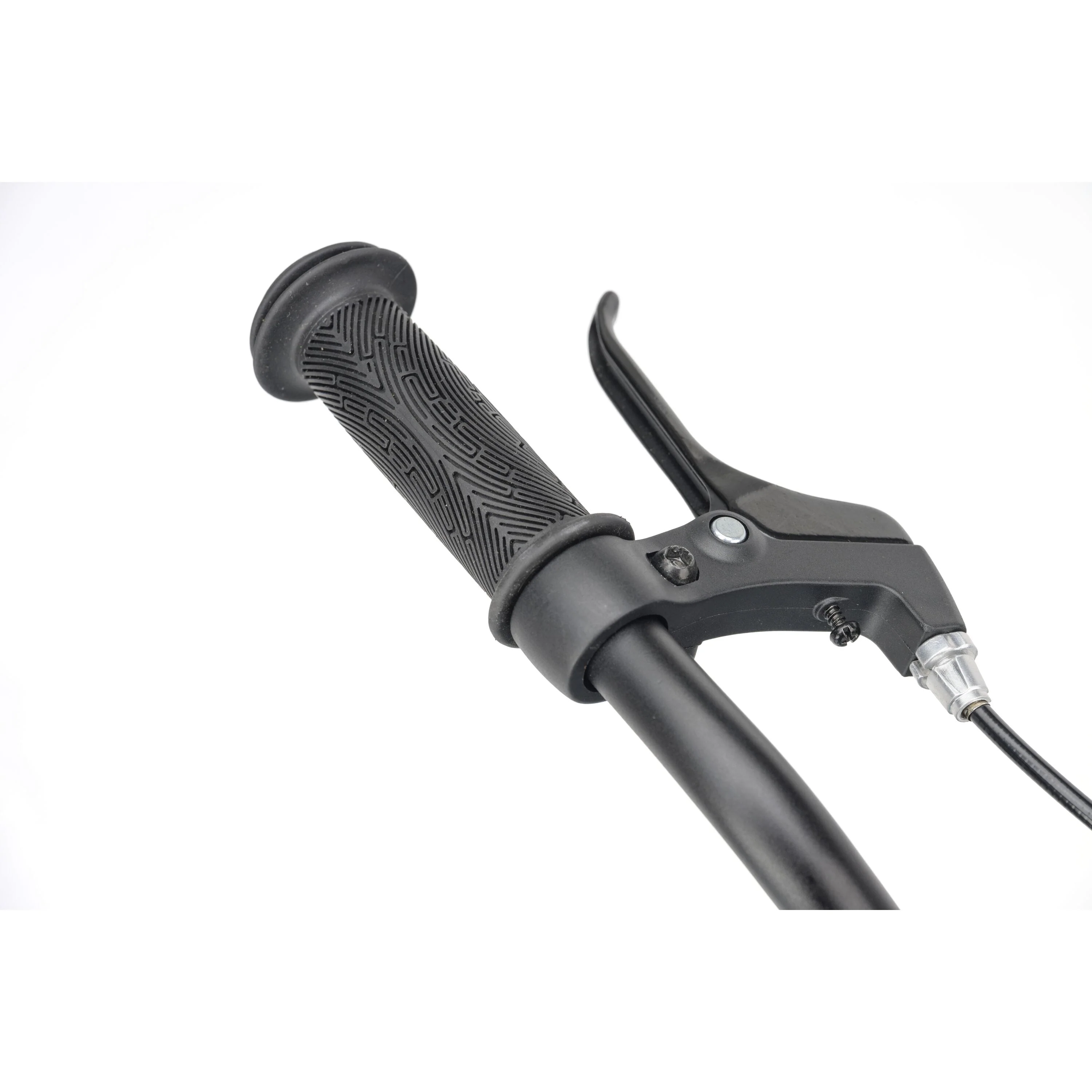

Smaller Grips — Our handlebars and grips are narrower diameter so they fit small hands better, for confidence and control as well as better ability to reach the brakes safely.

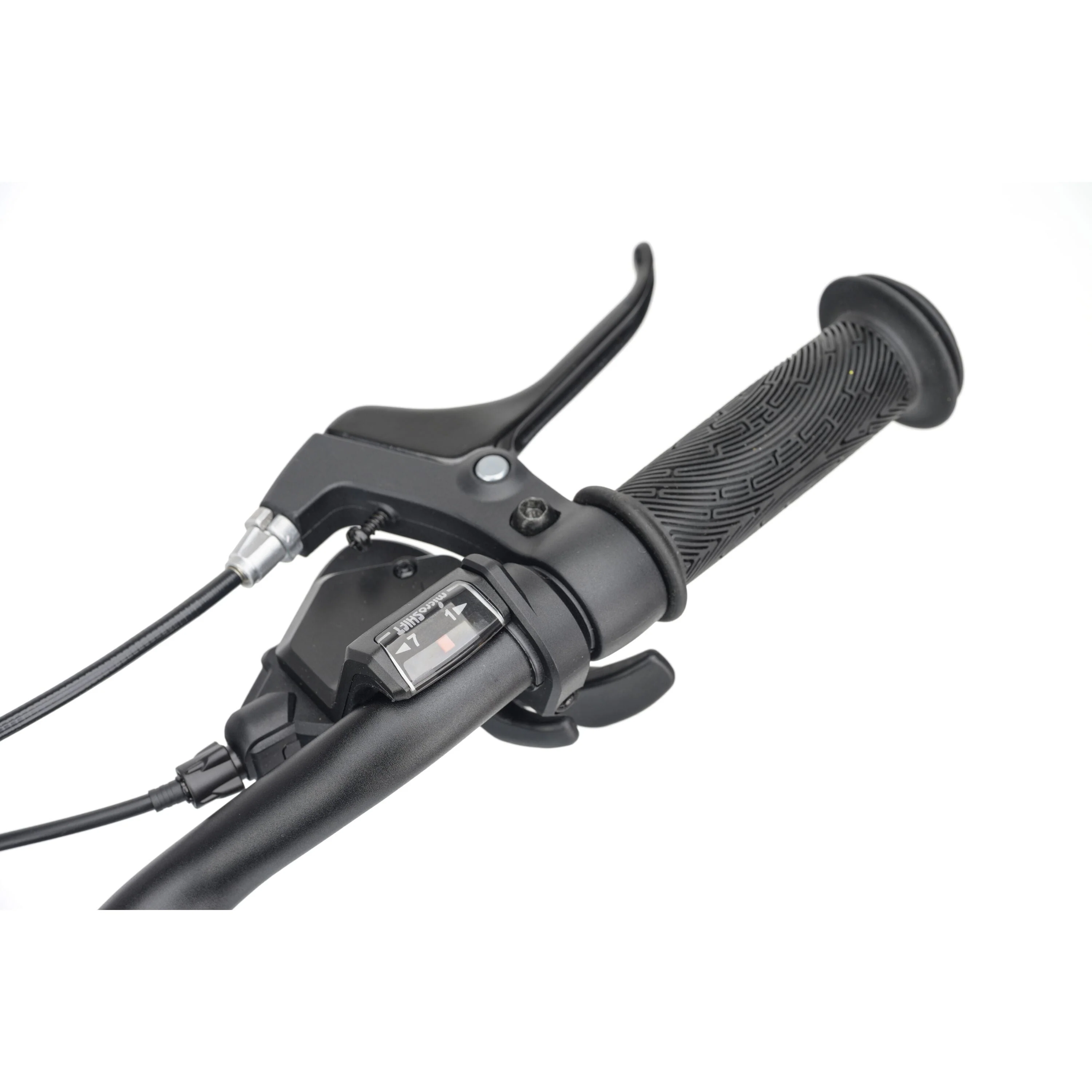

Better Brakes — Brake levers are closer to the bars and adjustable for reach to suit smaller hands, and work perfectly with our smaller diameter grips.

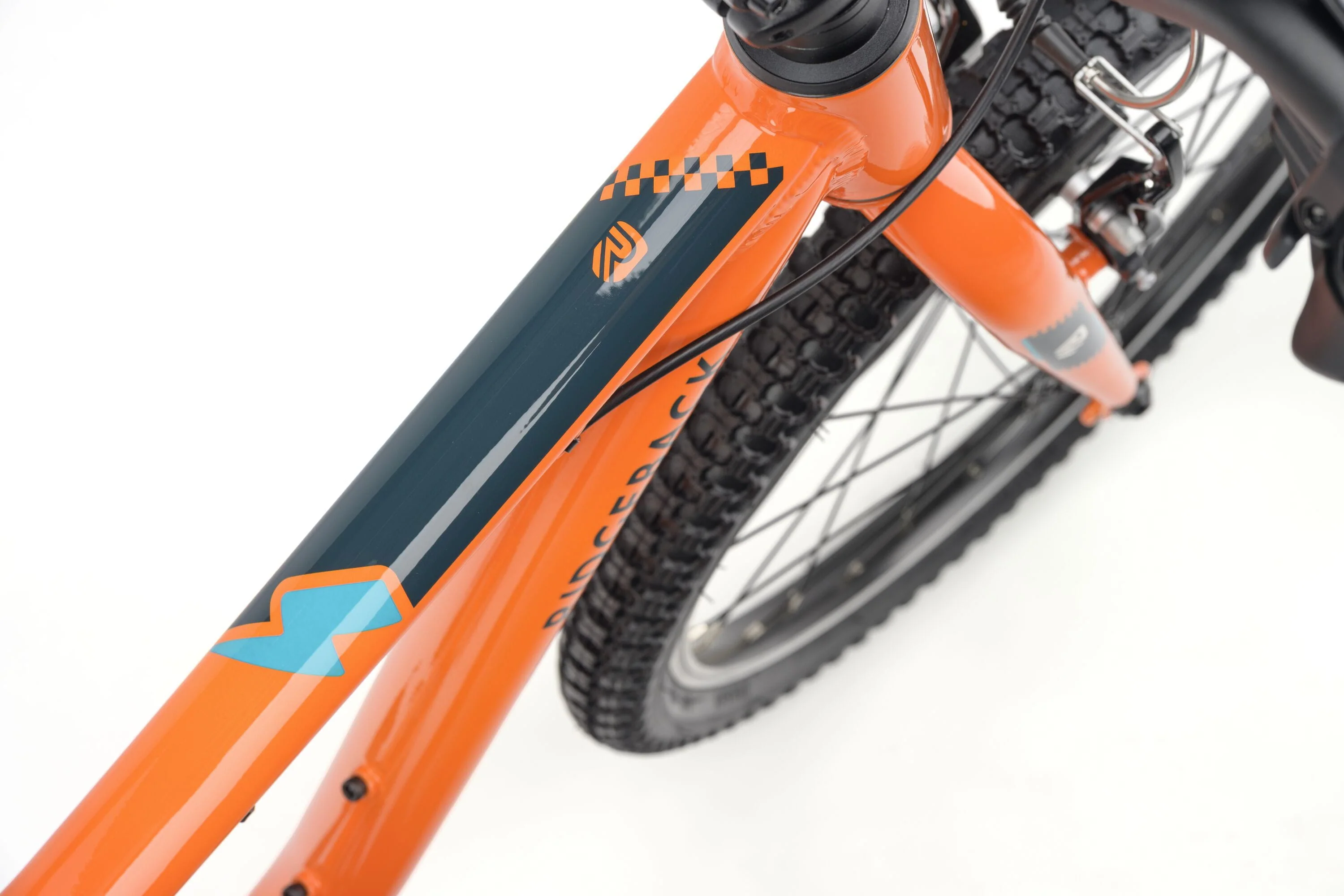

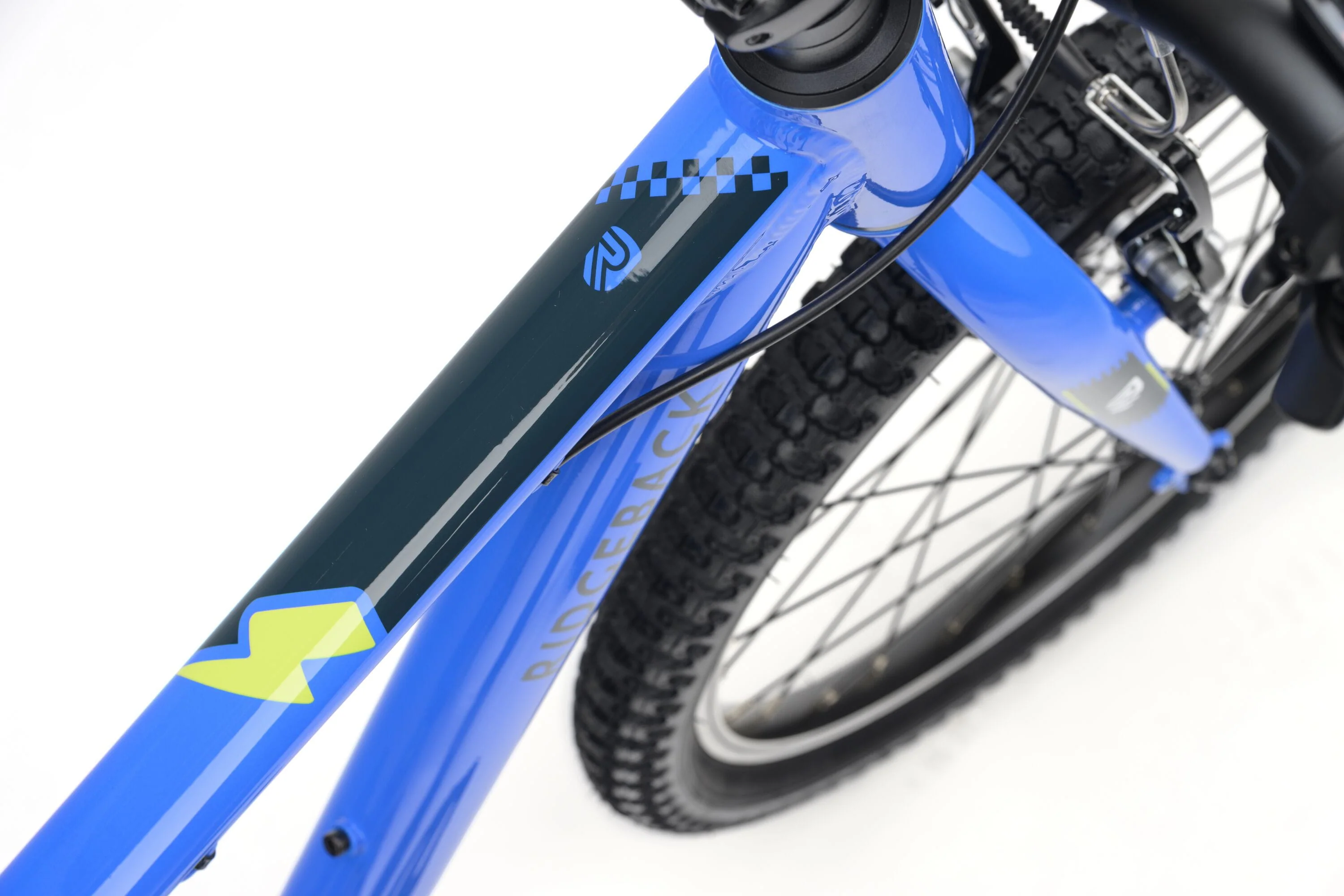

Lowered Frames — Our frames are lower where it counts, making it easier to get on and off and increasing clearance for greater confidence.

Steering Limiter — To help prevent falls when learning to co-ordinate pedalling and cornering, the steering has a limit stop that helps avoid an over-steering situation.

Specifications

Age Range 5.5 to 8.5
Height Range 112cm to 130cm
Inside Leg Range 50.5cm to 61cm

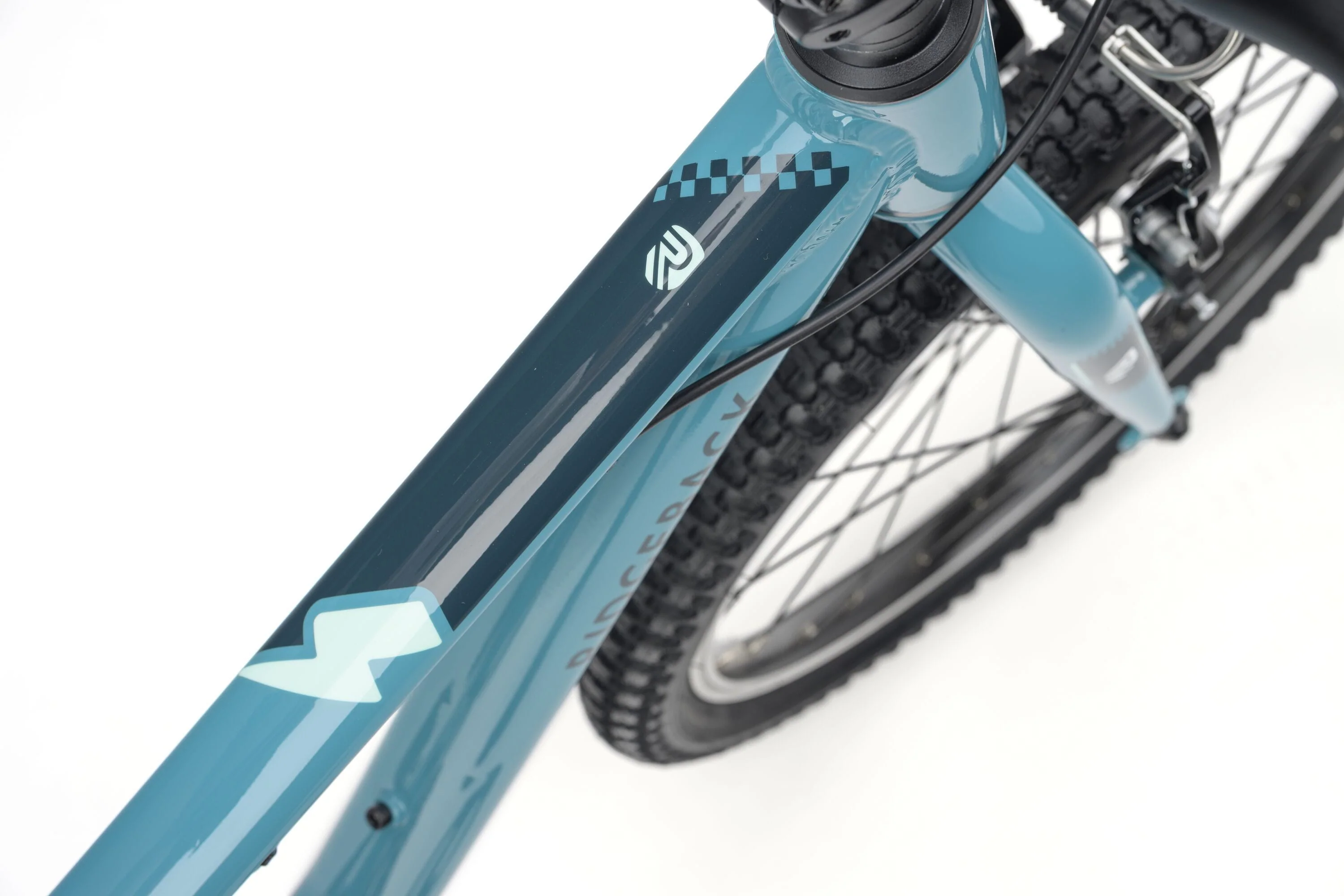

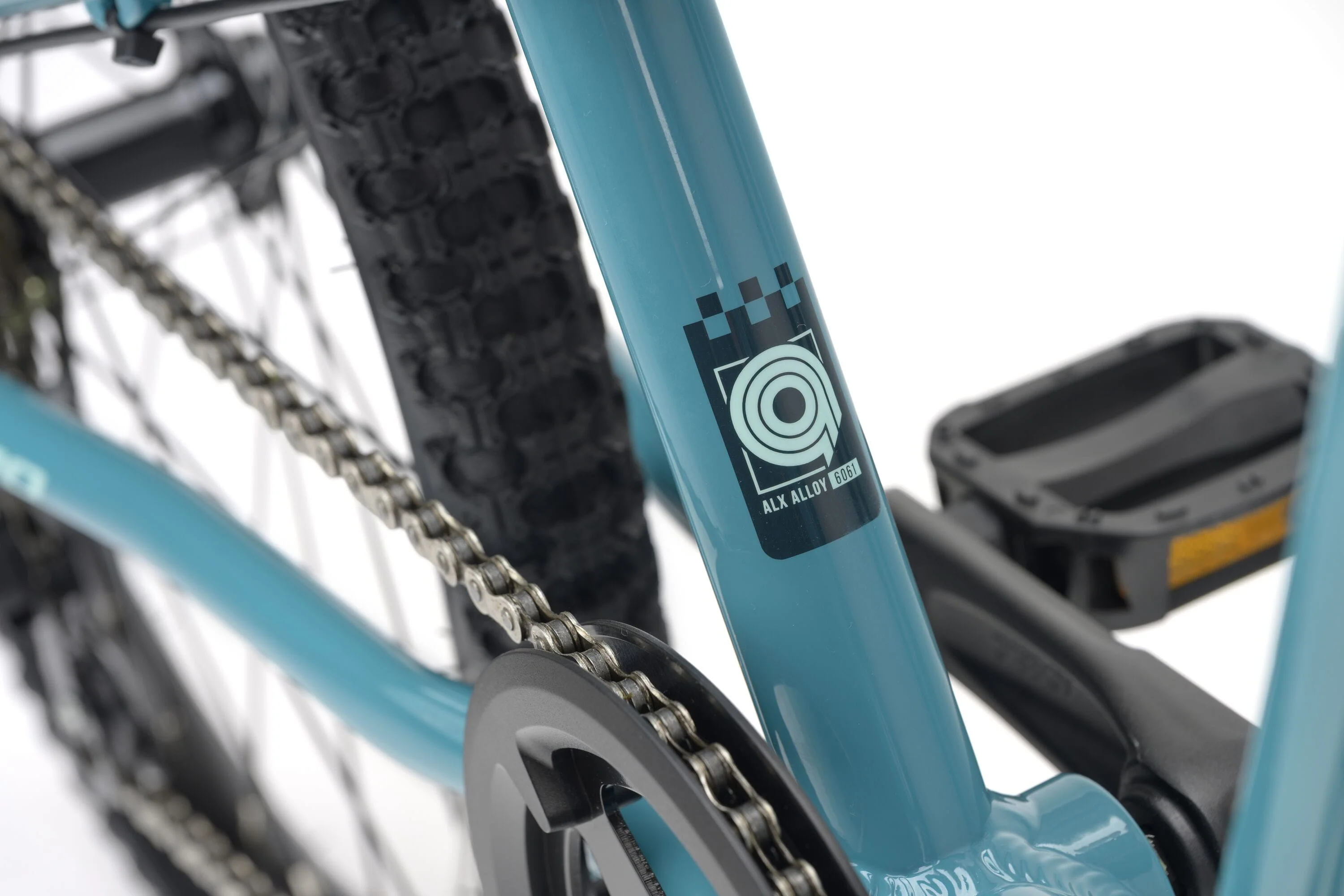

Frame Butted 6061-T6 heat-treated aluminium

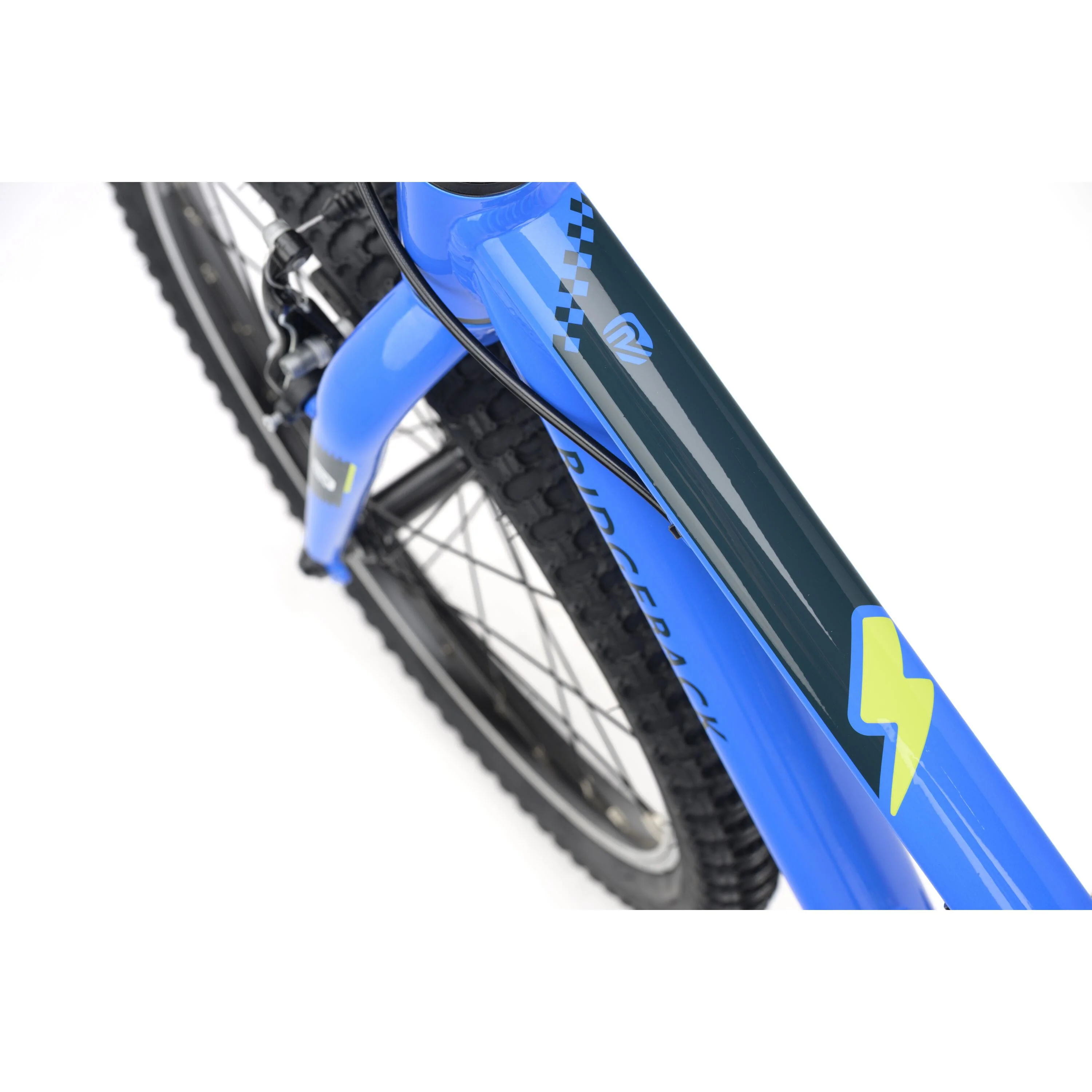

Fork High Carbon Steel

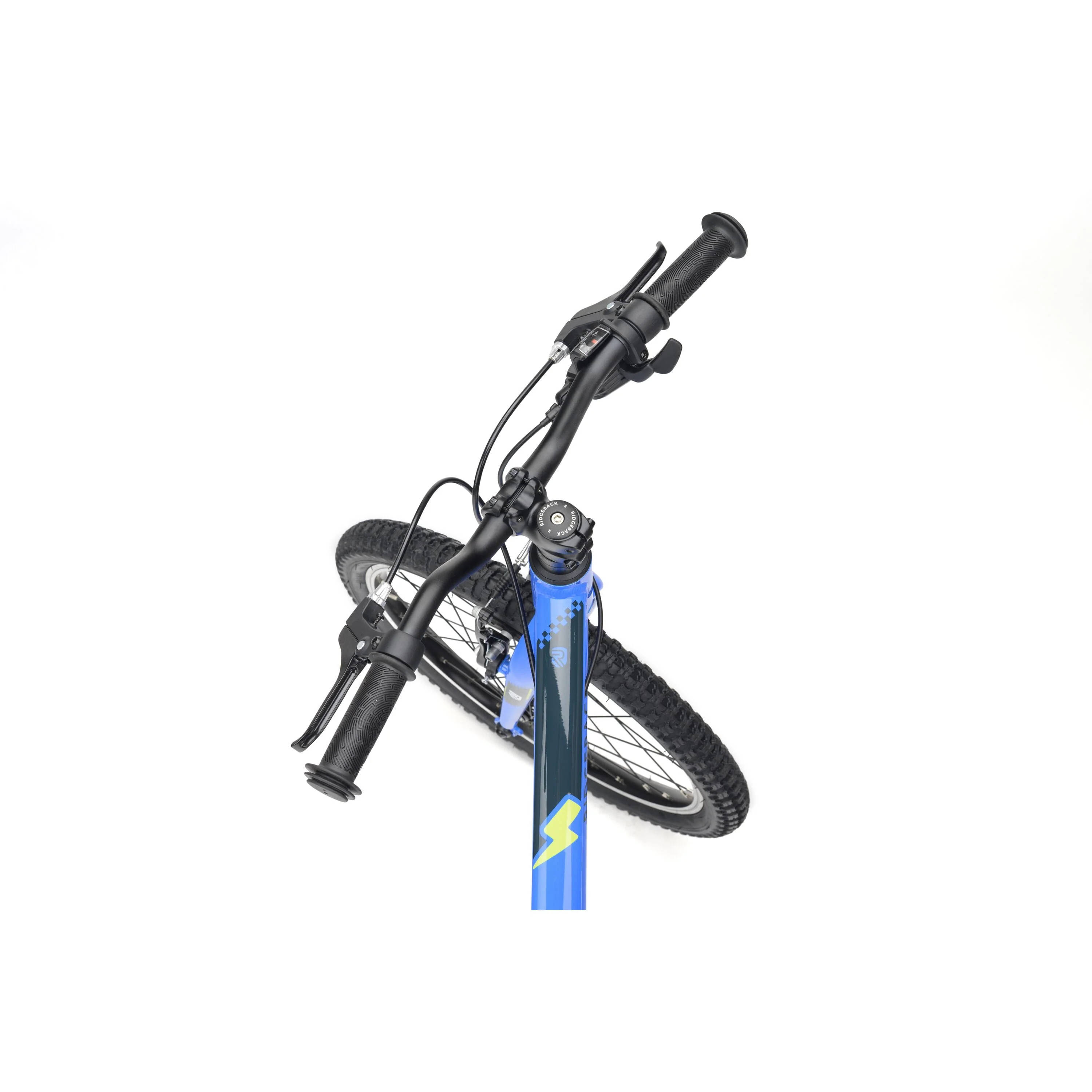

Bars 19.0mm OD grip area, 520mm W, 40mm rise,
10 degrees sweep
Grips 19.0mm ID Velo grips, Kraton rubber

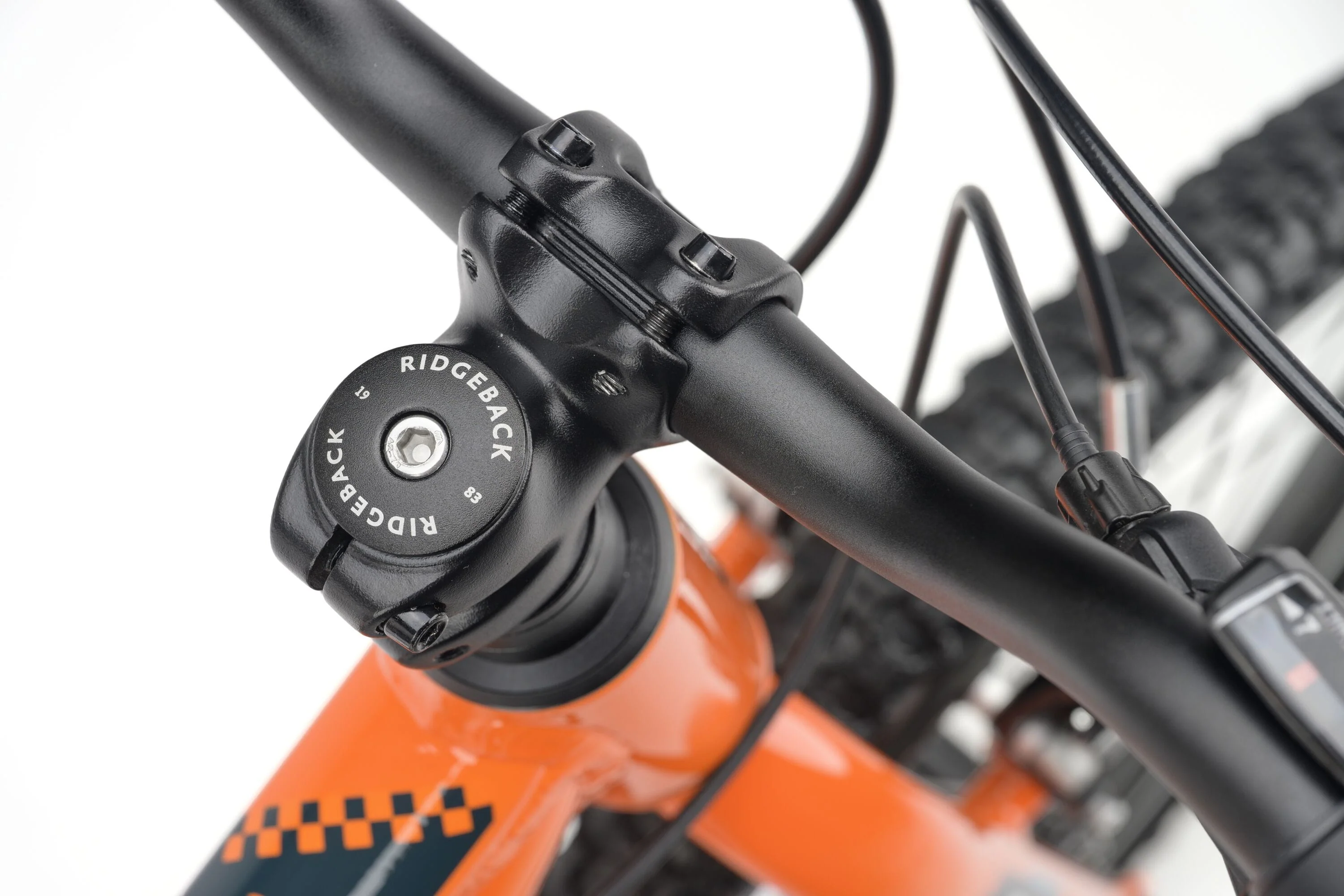

Stem 40mm extension, 10 deg rise, 25.4mm clamp

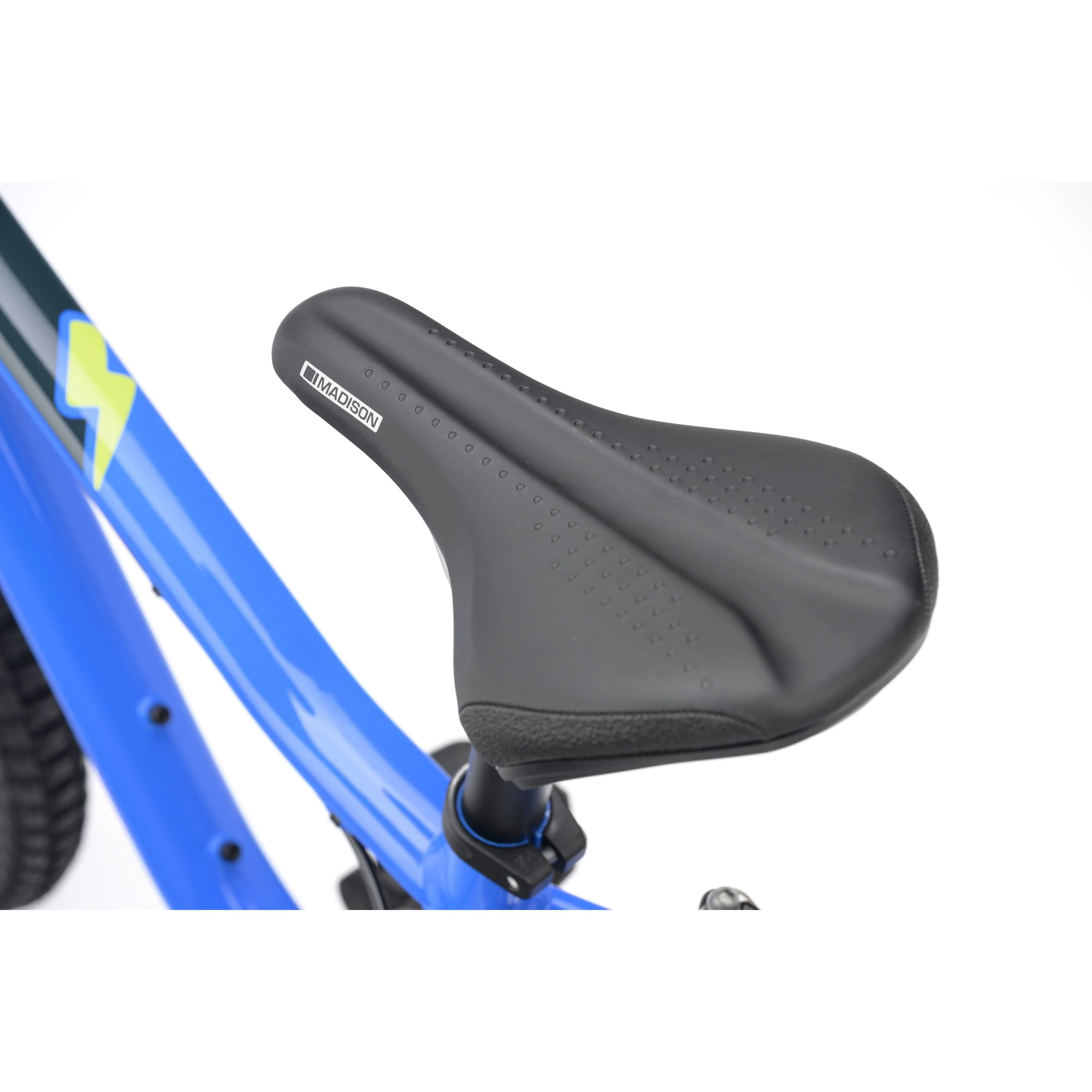

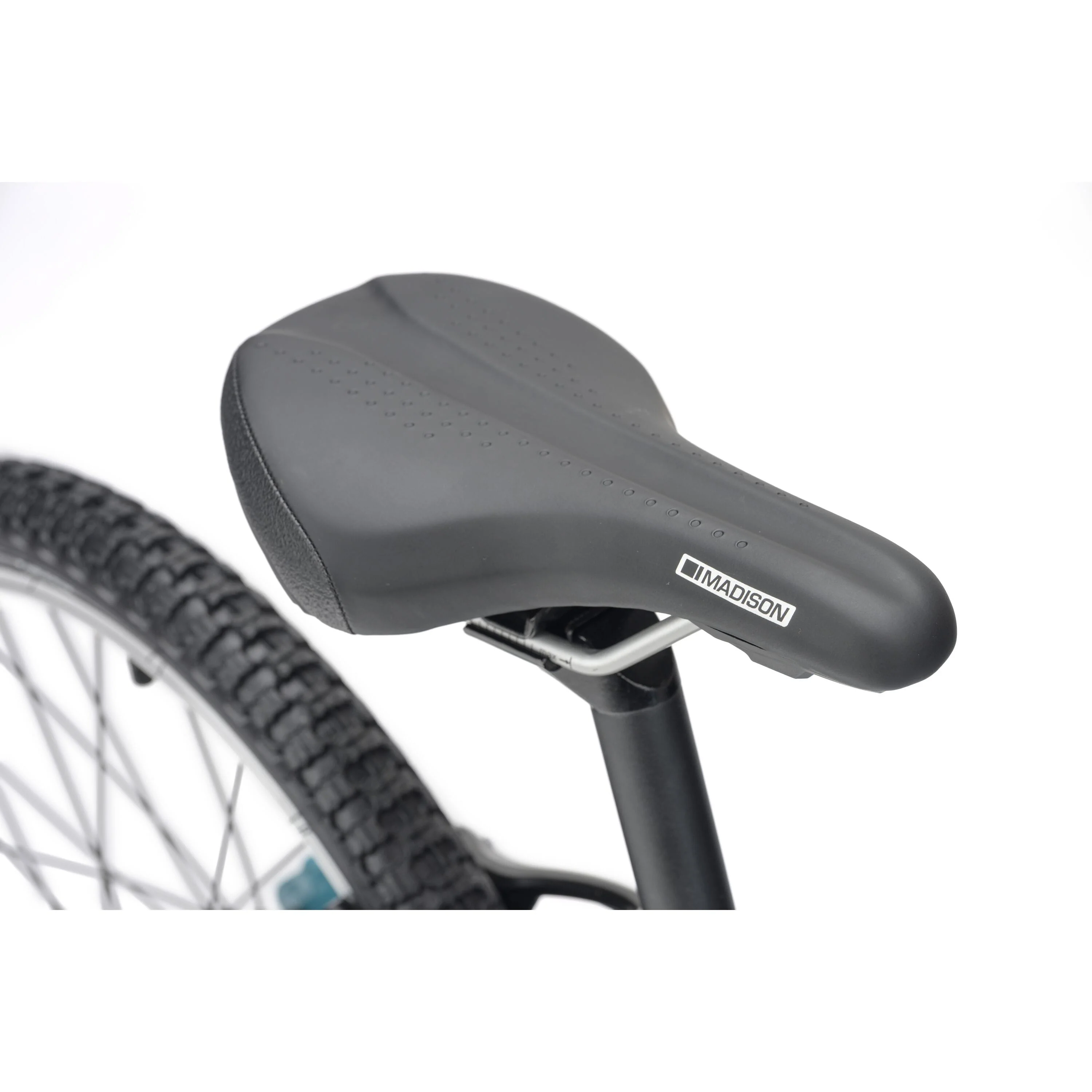

Saddle Madison, soft PU foam padding, 236L x 140W
Seat Post 27.2 x 250mm aluminium tube / steel head
Headset Upper- ZS44/28.6 Lower ZS44/30

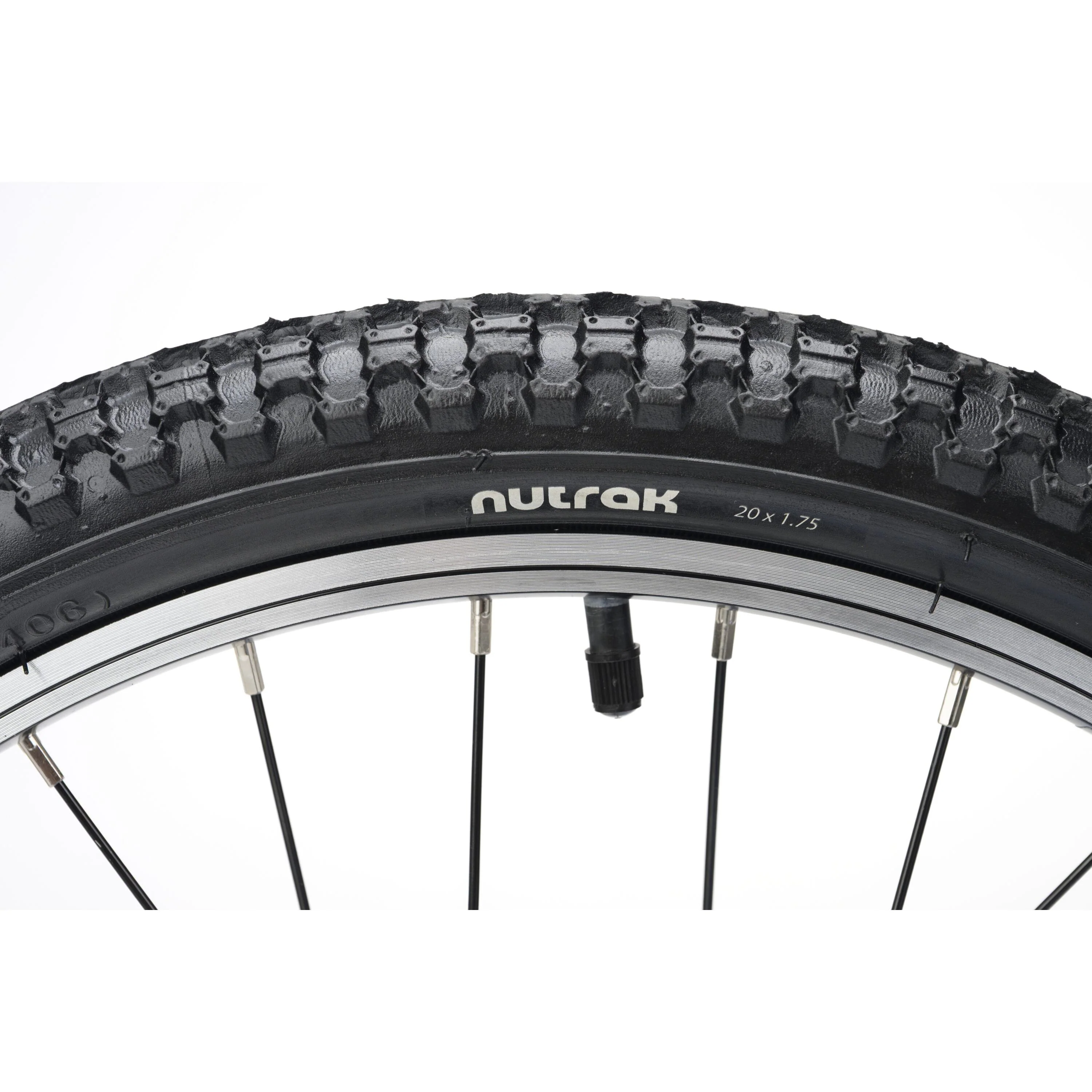

Tyres Nutrak Meteor, 20" x 1.75"
Rims Aluminium, machined sidewall with wear indicators,
28H F+R, Car-type valve
Front Hub Steel, M6 bolted axle
Rear Hub Steel, 15mm safety dome-nutted axle

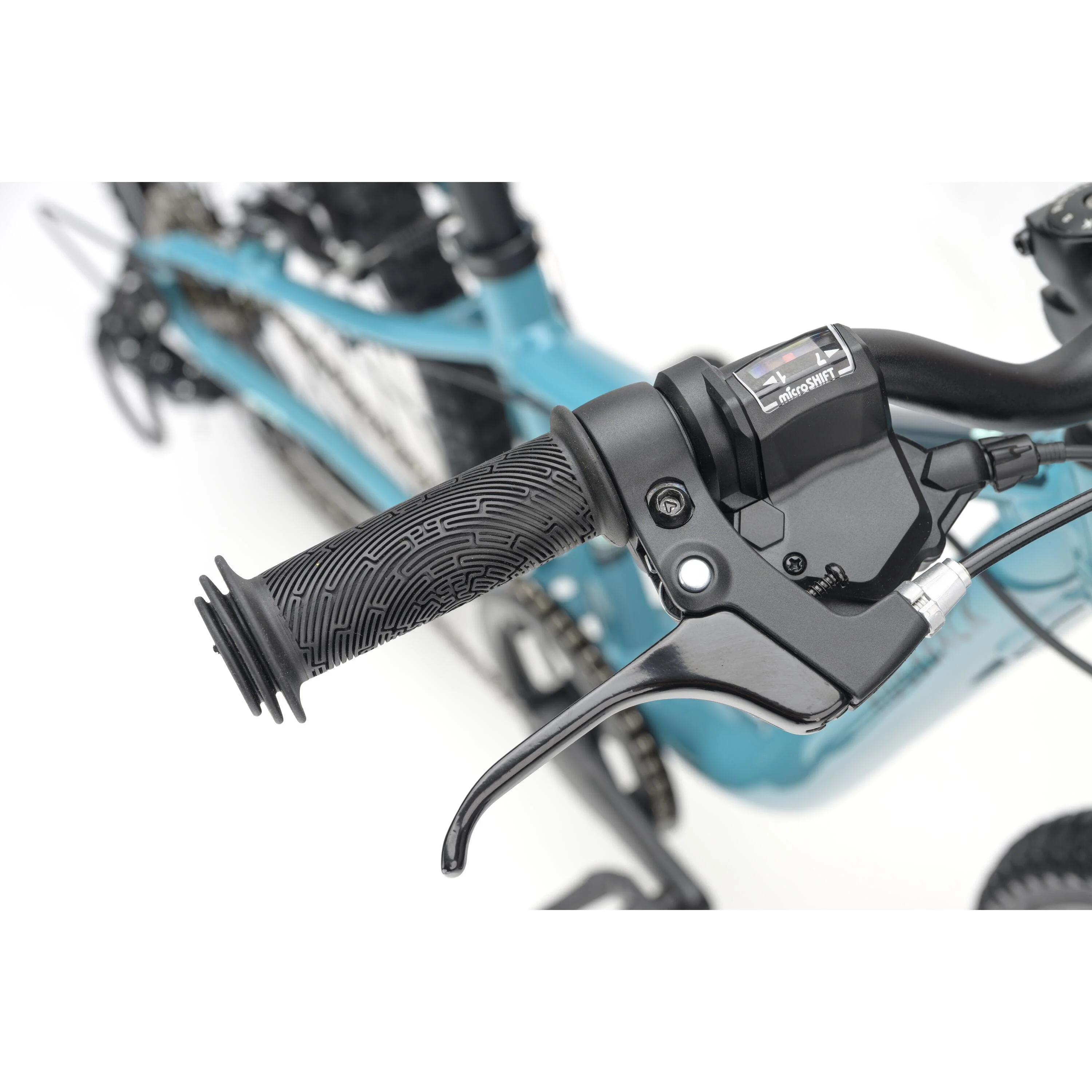

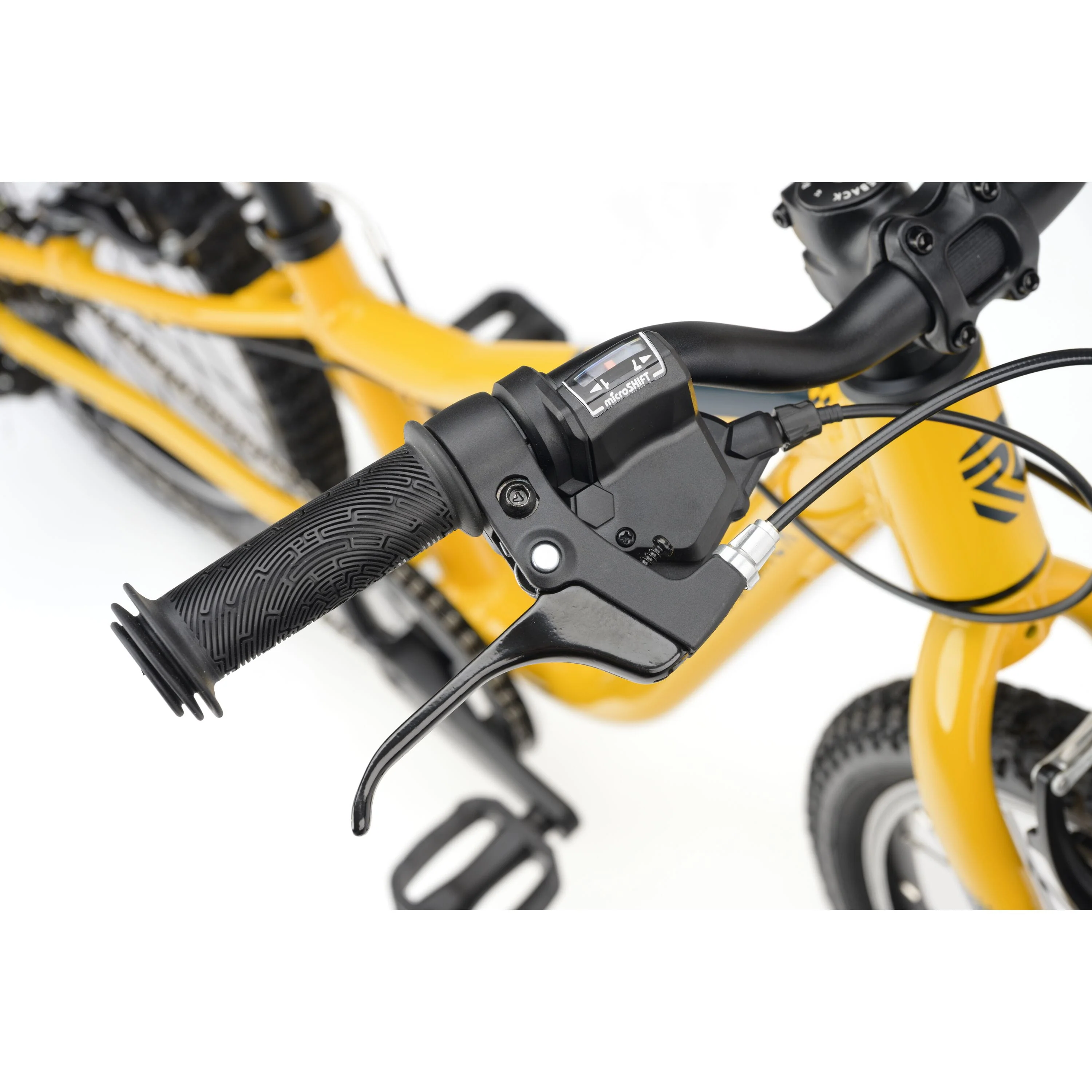

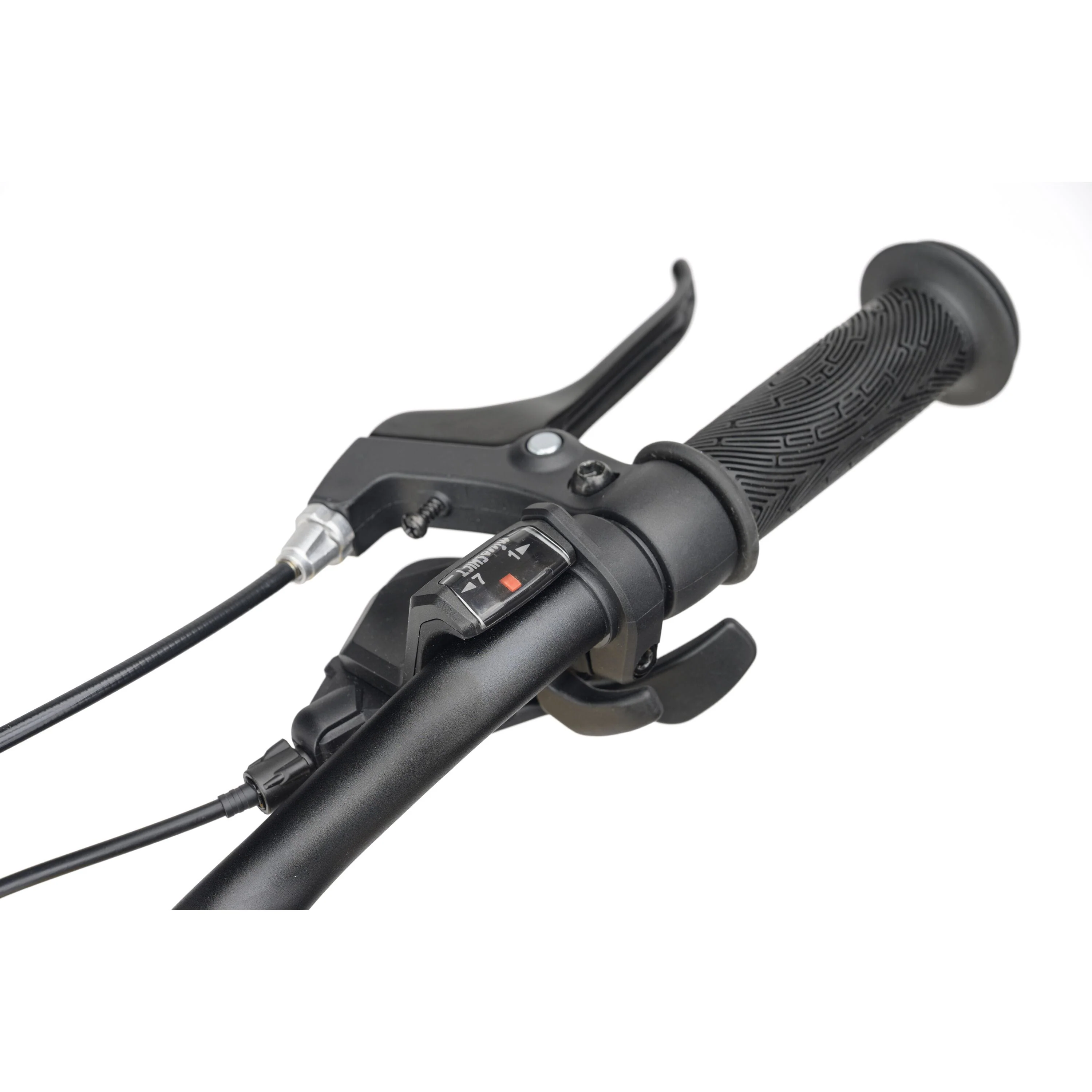

Shifters Microshift TS38 trigger shifter

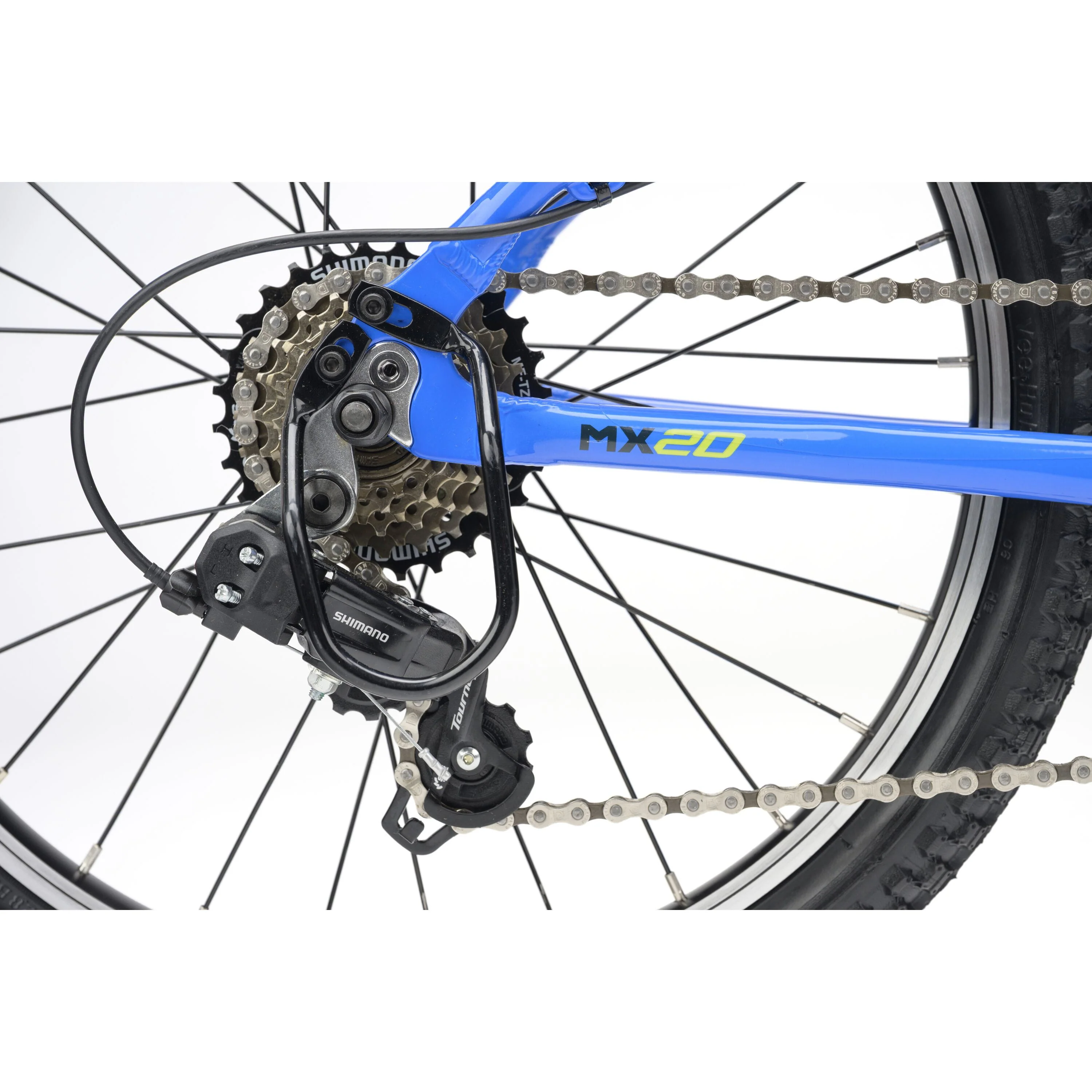

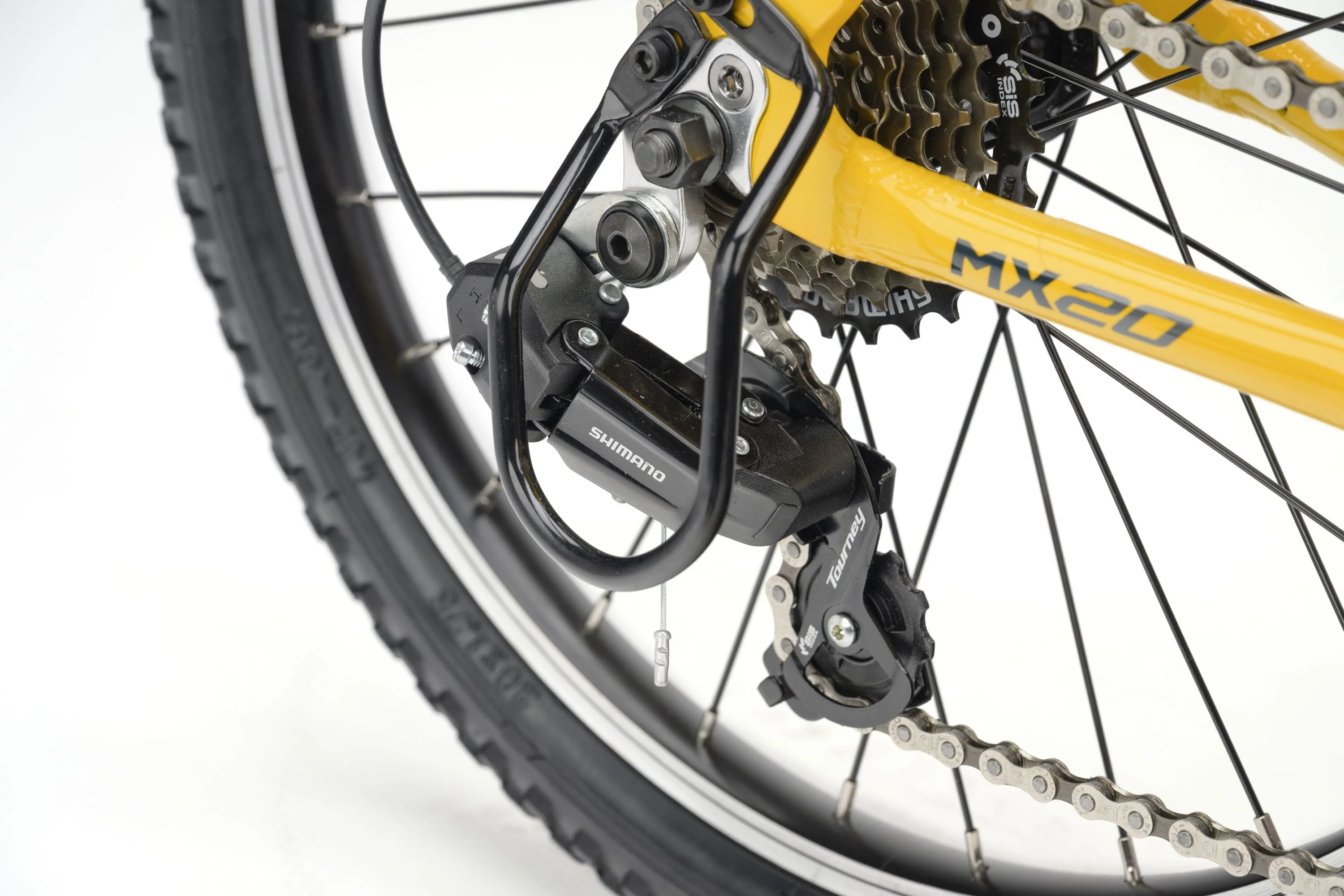

Rear Mech Shimano RD-TY200 short cage w/ protective bash guard

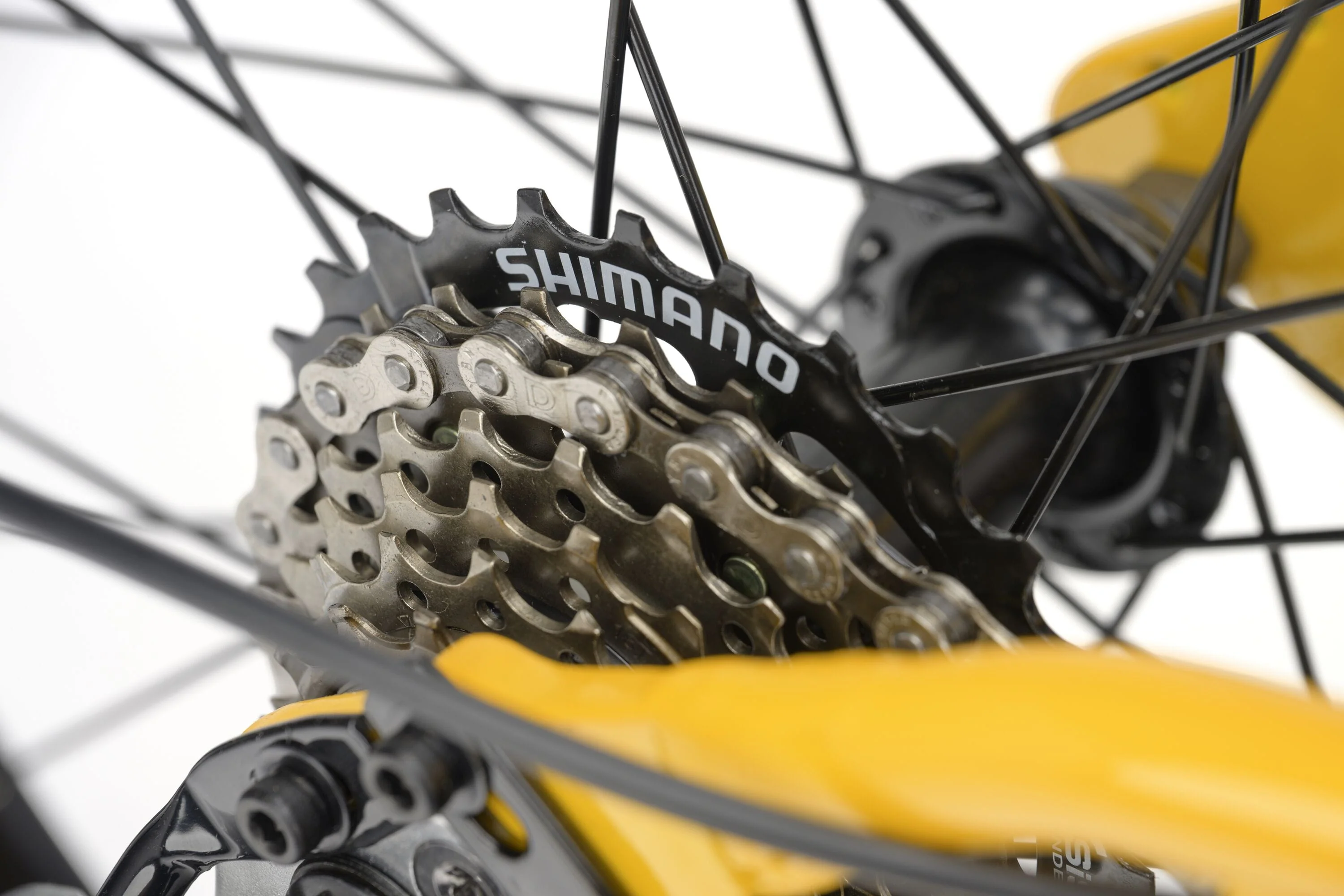

Cassette Shimano MF-TZ500, 7 speed, 14-28T
Chain KMC

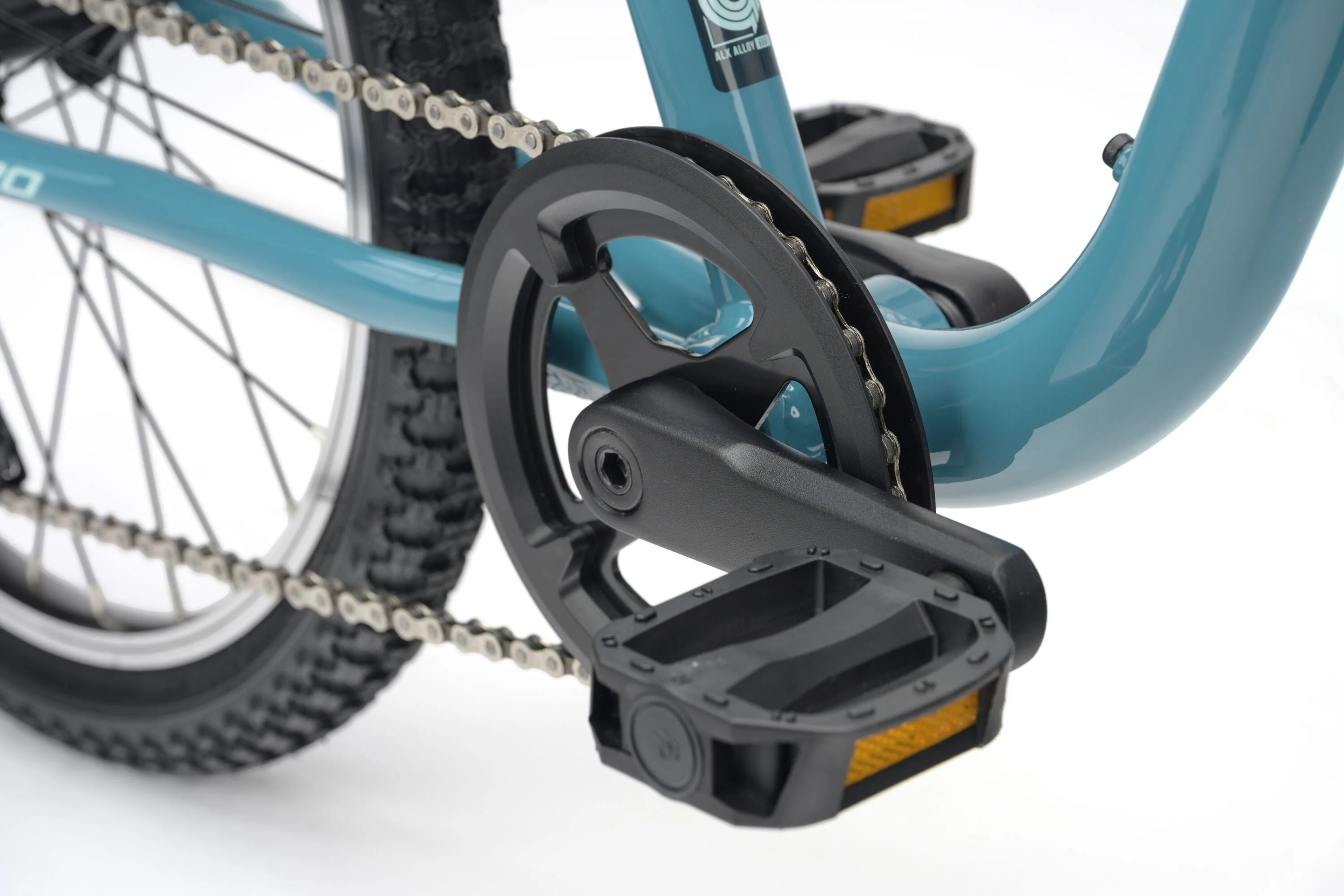

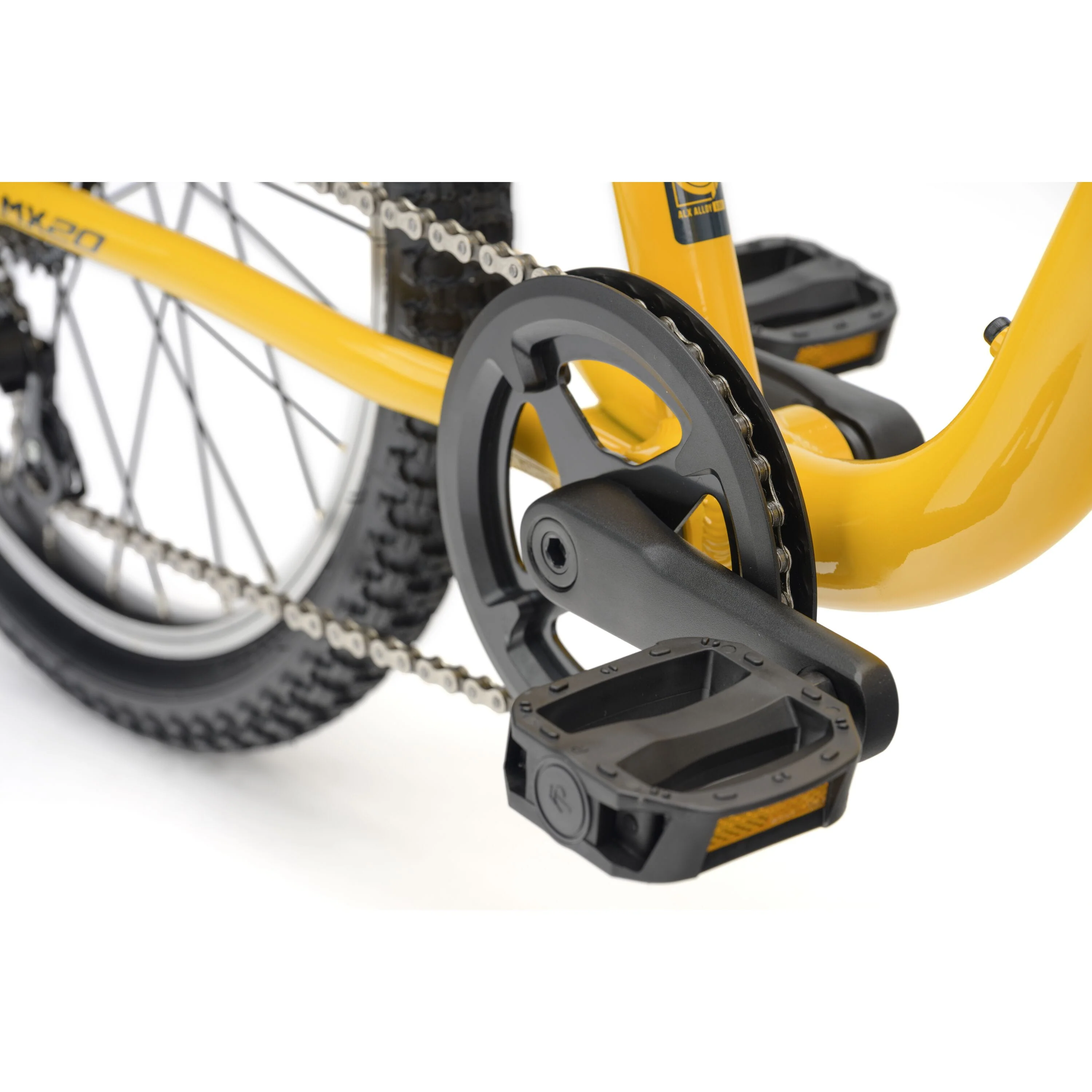

Cranks Forged aluminium, low Q-factor design, 114mm length
Chainring 34T, steel, double chain retention discs
Bottom Bracket Sealed, CrMo 113mm axle
Pedals Nylon resin compact pedals, ball-bearings
Brake Levers Promax BL367, reach adjustable, resin body

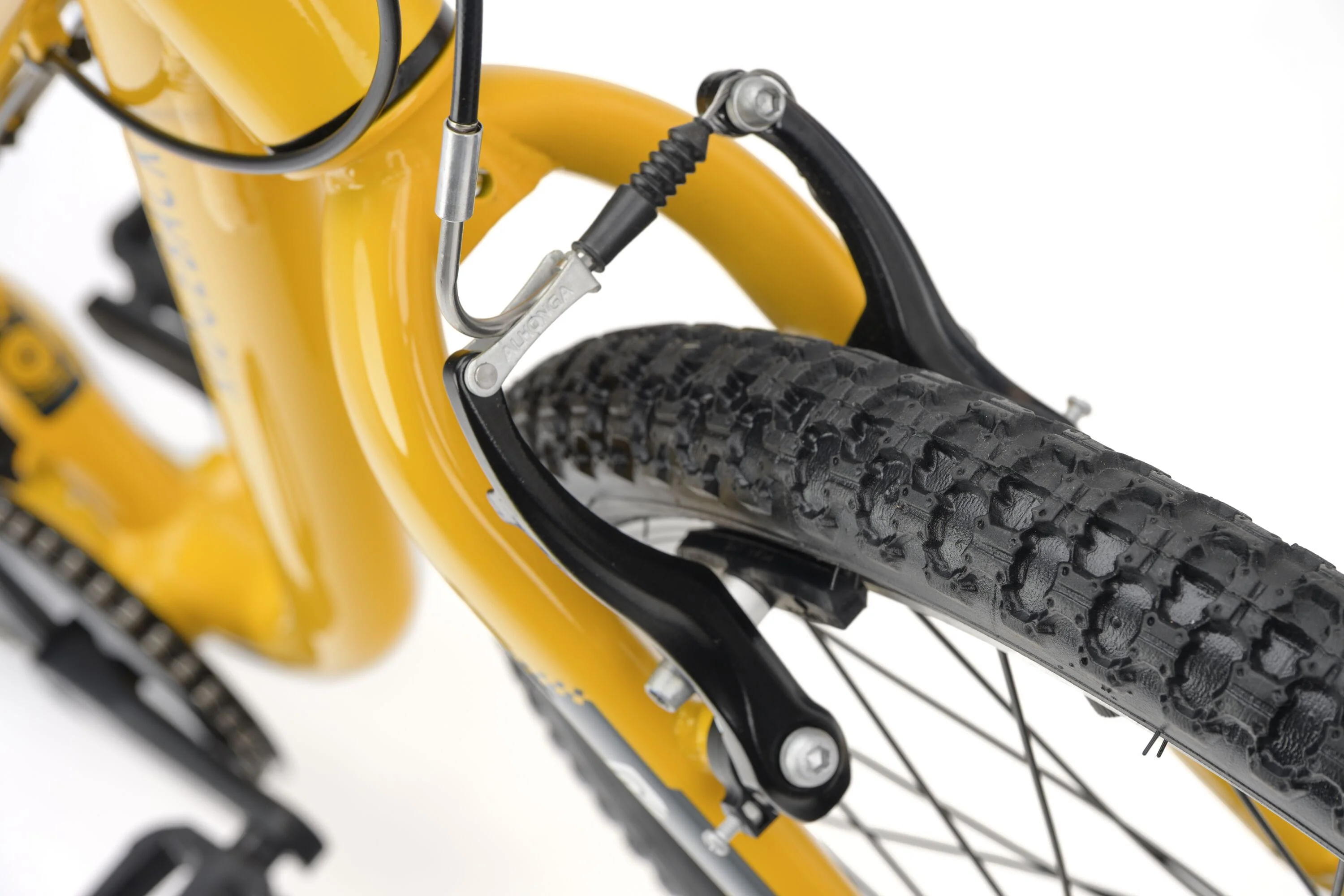

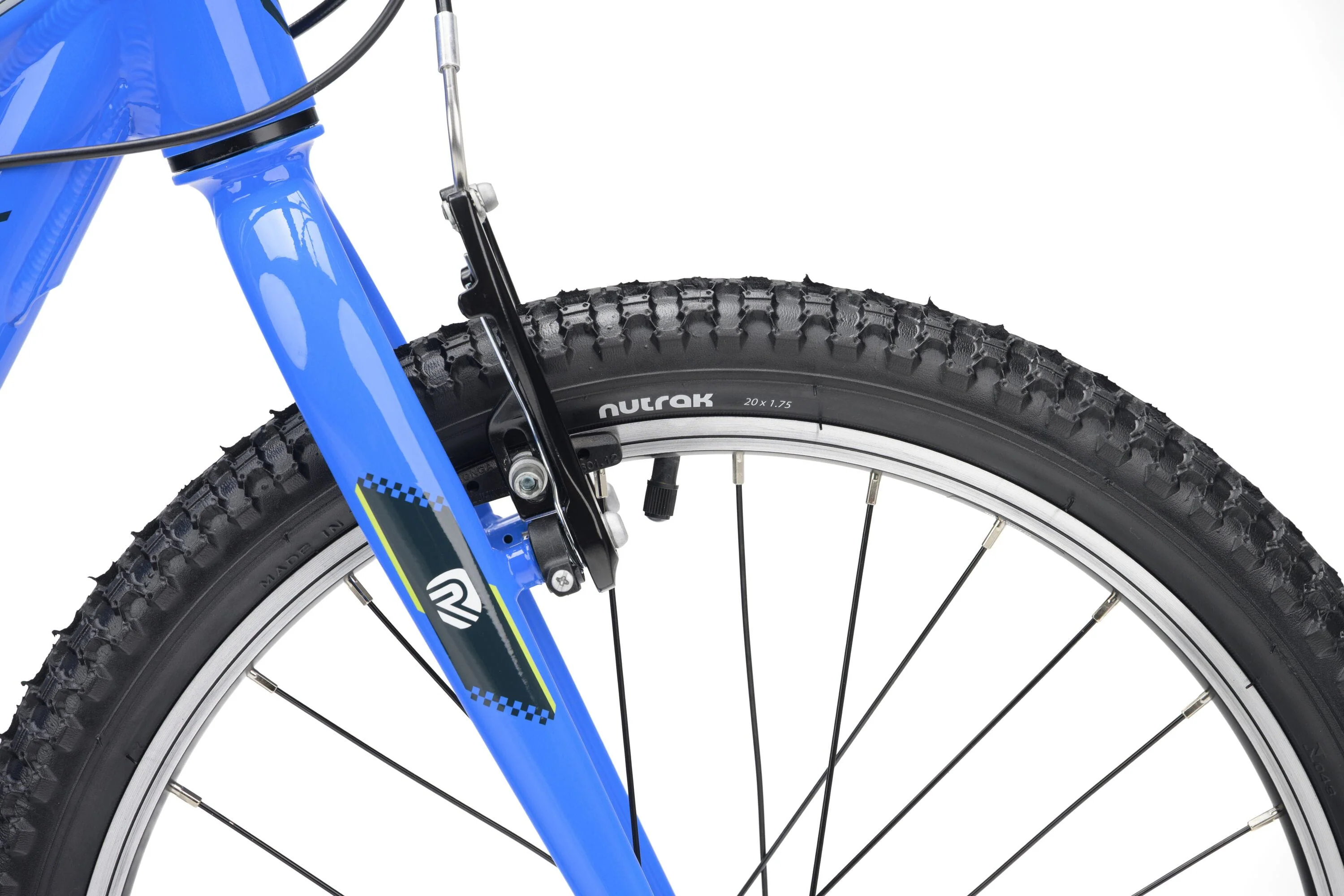

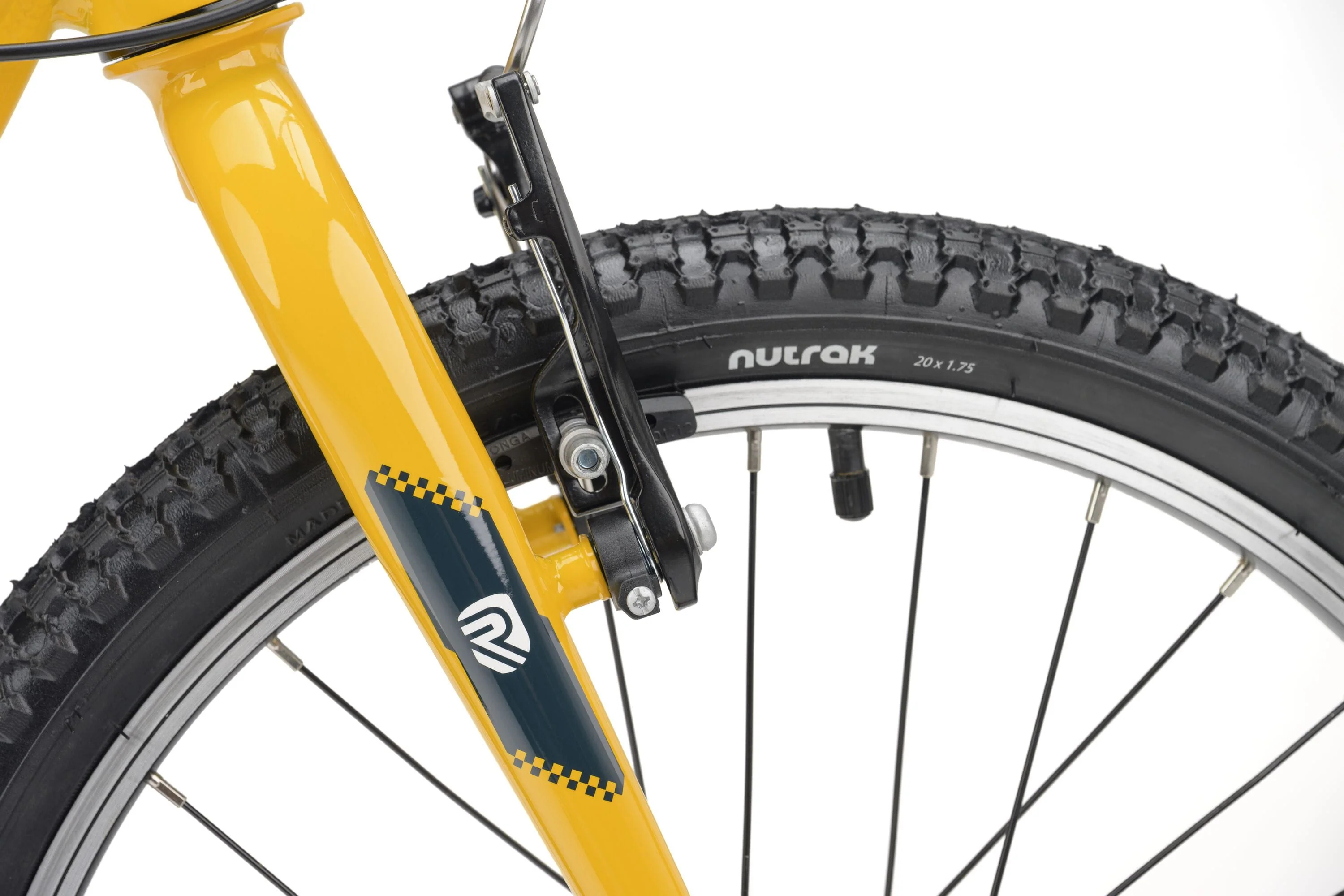

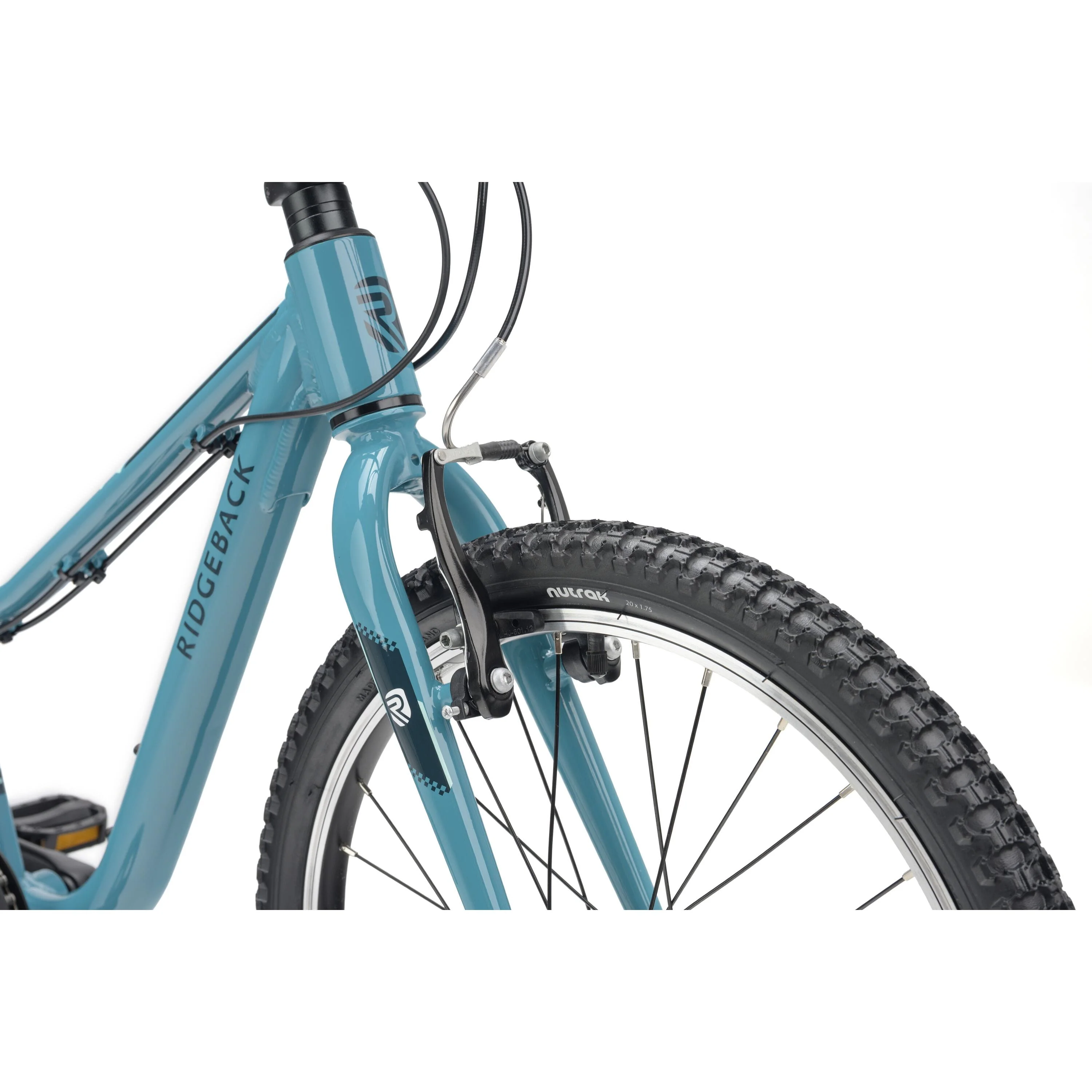

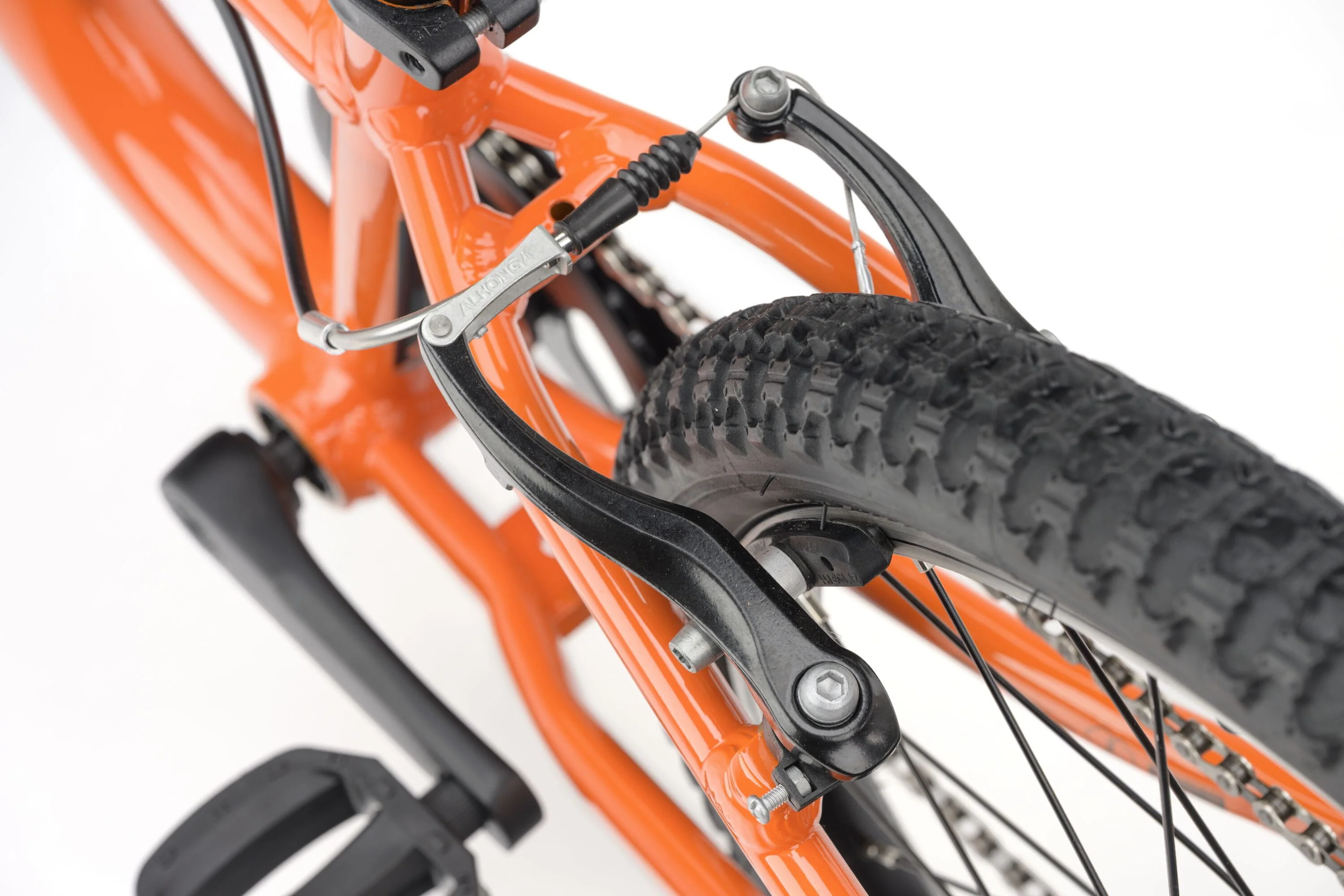

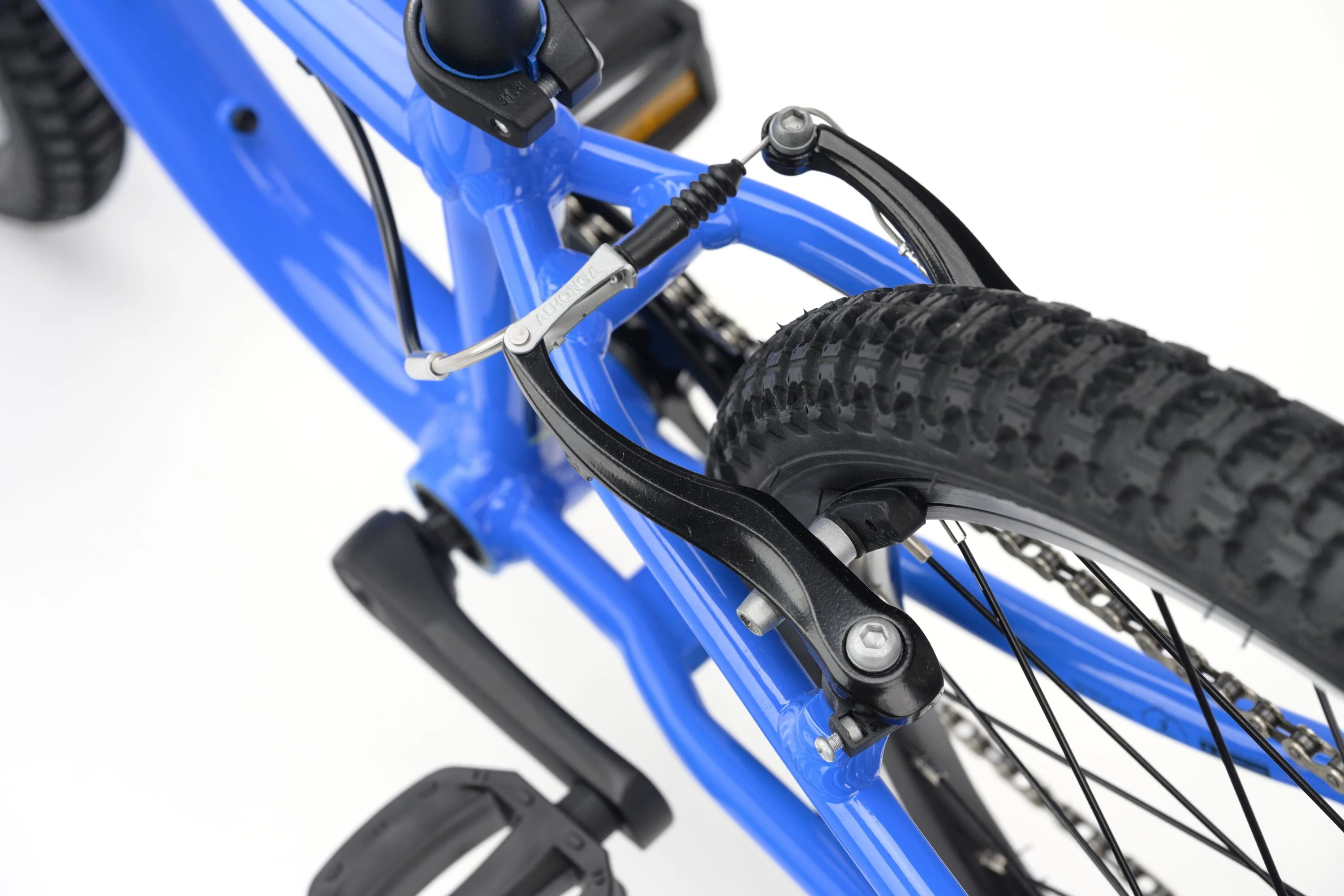

Brakes Aluminium V-brake, adjustable linear spring
